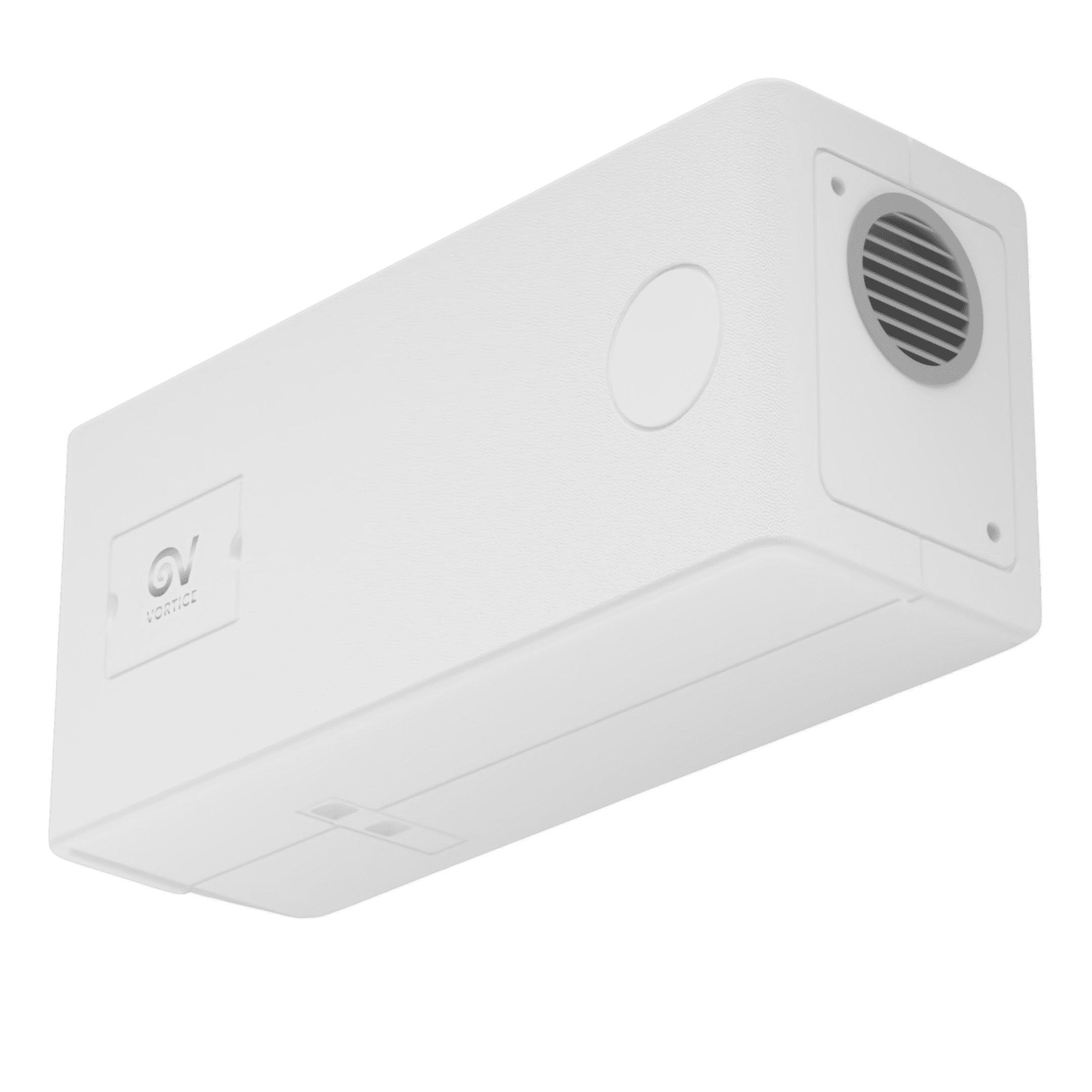

The PIV Wall is a wall-mounted positive input ventilation (PIV) system designed to improve indoor air quality in homes with or without loft spaces. It draws in fresh outdoor air, filters it, and uses automatic airflow regulation to ensure optimal ventilation throughout the home. This helps prevent condensation and mould, creating a healthier living environment. With a quiet, low-energy fan and minimal maintenance, the system is easy to use and comes with a 7-year warranty. Optional features include a wireless boost switch for enhanced control and an integrated heater for added comfort.
Models
Description
Code
Wall Mounted PIV Fan with Right Hand Supply Point
10942
Wall Mounted PIV Fan with Right Hand Supply Point and RF Control
10952
Wall Mounted PIV Fan with Left Hand Supply Point
10943
Wall Mounted PIV Fan with Left Hand Supply Point and RF Control
10953
Key Features
Whole home system: suitable for homes with or without loft spaces.
7-year warranty: peace of mind with a reliable 7-year warranty.
Energy-ffficient operation: ultra-quiet, low-energy fan/motor assembly for minimal power consumption.
Data logging: includes a run monitor that logs the time power is supplied to the unit.
Low maintenance: G3 filter as standard for easy maintenance.
Highly controllable: multi-functional controls to adjust airflow and temperature, customized for home and occupants.
RF wireless boost option: wall-mounted boost switch for improved user interaction.
Heater option: optional electric heater available for added comfort.
Automatic heat recovery mode: increases airflow when the loft is warm, reducing heating costs.
Automatic standby mode: prevents unnecessary warm air introduction during hot days for energy efficiency.
Installer lock-off feature: prevents tampering with the system.
Technical Features
