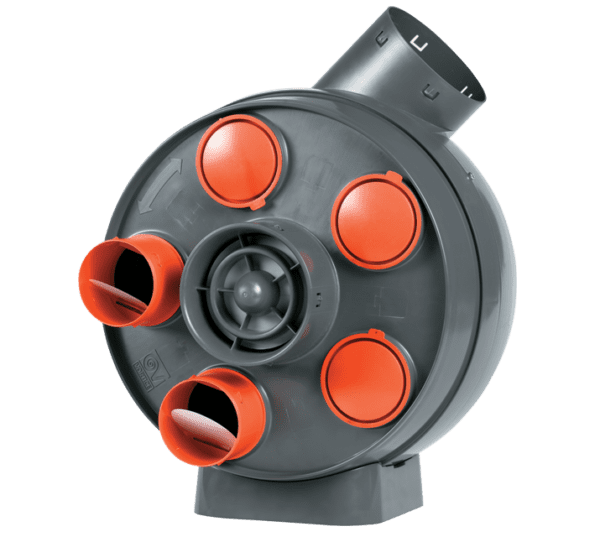

Penta MEV HCS Unit

The Penta MEV HCS is a centralised mechanical extract unit, designed for kitchens and up to five wet rooms. It features a self-balancing system with adjustable speeds, ensuring efficient airflow and energy savings. Equipped with humidity sensors, the unit automatically adjusts based on moisture levels. With flexible installation options and an IPX4 rating, it offers reliable performance and easy maintenance, making it ideal for residential applications.

70_EN_12103_Foto_WEB_vort_penta_01_102093-600x537

12103_Foto_WEB_vort_penta_ambiente01_134144

Humidity Control

Models

Description

Code

Continuous Centralised Self Balancing Mechanical Extract Unit with Humidistat

12103

Features and Benefits

Key Features

Multi-room ventilation: suitable for kitchen + 5 wet rooms.
Built-in humidity sensors: auto-adjusts based on moisture levels.
Self-balancing: maintains consistent airflow.
Easy install: integrated rotating bracket to install in any position.
IPX4 rated.

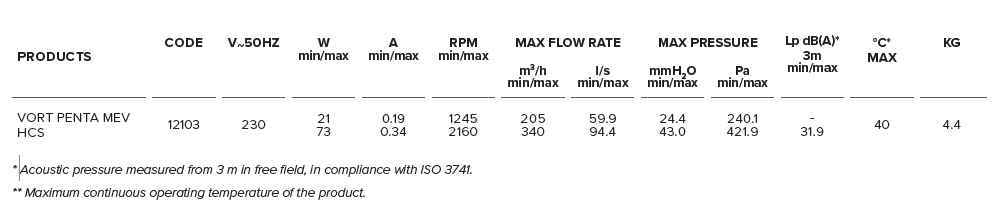

Technical Features

Durable ABS casing: impact and UV-resistant black plastic resin.
Flexible ducting: 6 intake spigots (5 x 80mm, 1 x 125mm).
Optimised airflow: 125mm lateral discharge outlet.
Long-lasting motor: 3-speed AC, thermally protected, 30,000 + hour lifespan.
Smart humidity control: electronically managed sensors.
Convenient accessories: includes 2 regulators and 4 blanking caps (80mm).

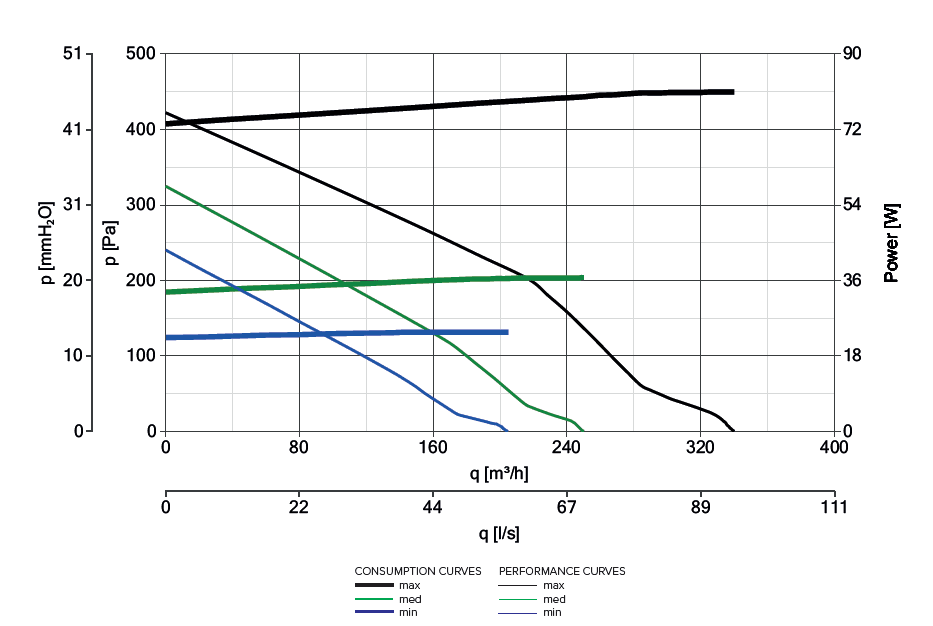

Performance Data
