Phantom MVHR Unit

The Phantom MVHR unit is a high-performance heat recovery unit designed for ceiling void installation in residential and commercial spaces. Offering up to 93% thermal efficiency, it ensures optimal indoor air quality with low energy consumption and minimal noise. The unit features a high-efficiency heat exchanger, EC brushless motors, and a fully filtered air system, providing 100% fresh, clean air even in bypass mode. With its sleek design, easy maintenance, and optional external sensors for automatic control, the Vort Phantom is an ideal solution for energy-efficient, discreet ventilation.

01_IT_11291_Foto_WEB_vort_phantom_02_89915

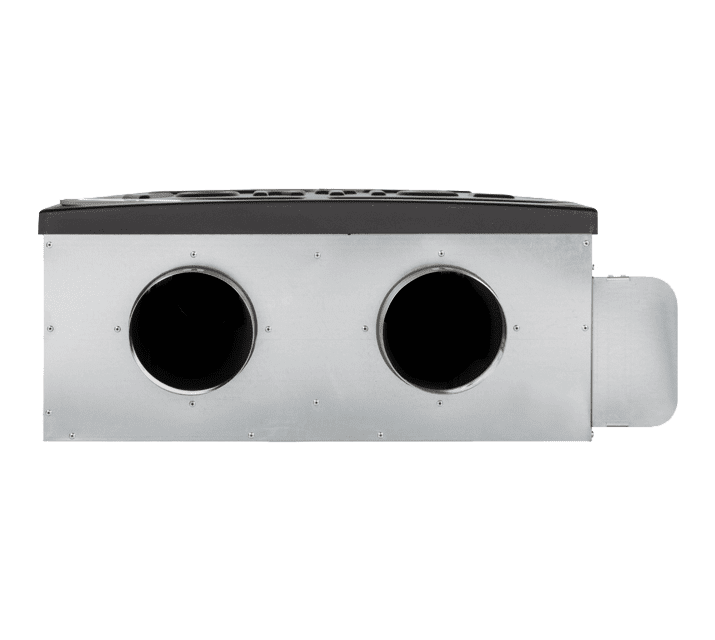

01_IT_11291_Foto_WEB_vort_phantom_01_118546

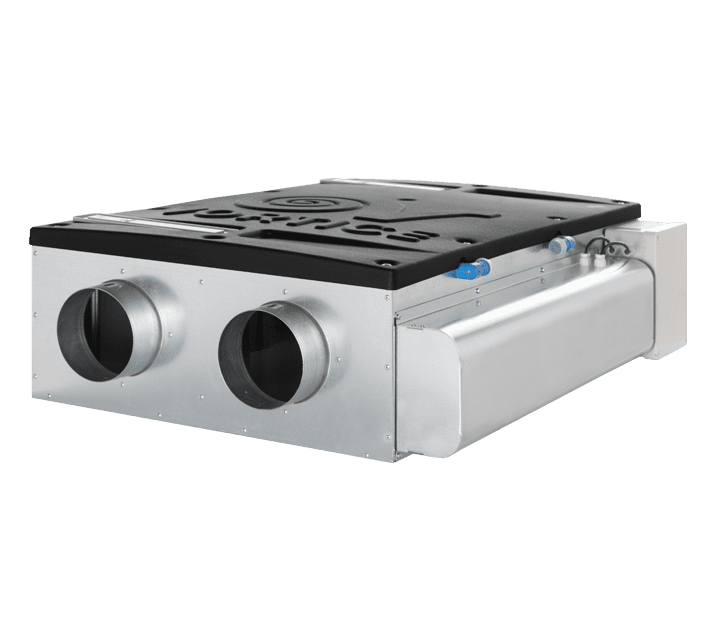

01_IT_11291_Foto_WEB_vort_phantom_03_89927

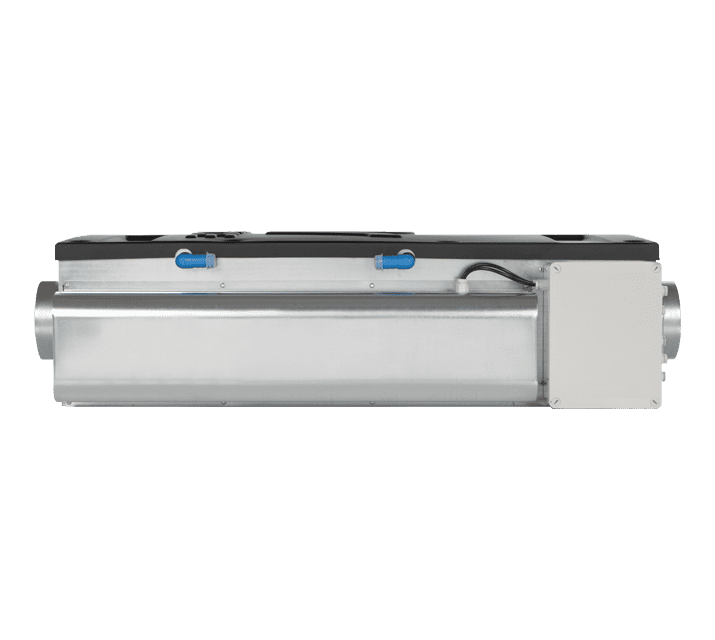

01_IT_11291_Foto_WEB_vort_phantom_04_89939

21194 controller phantom invisible hr200

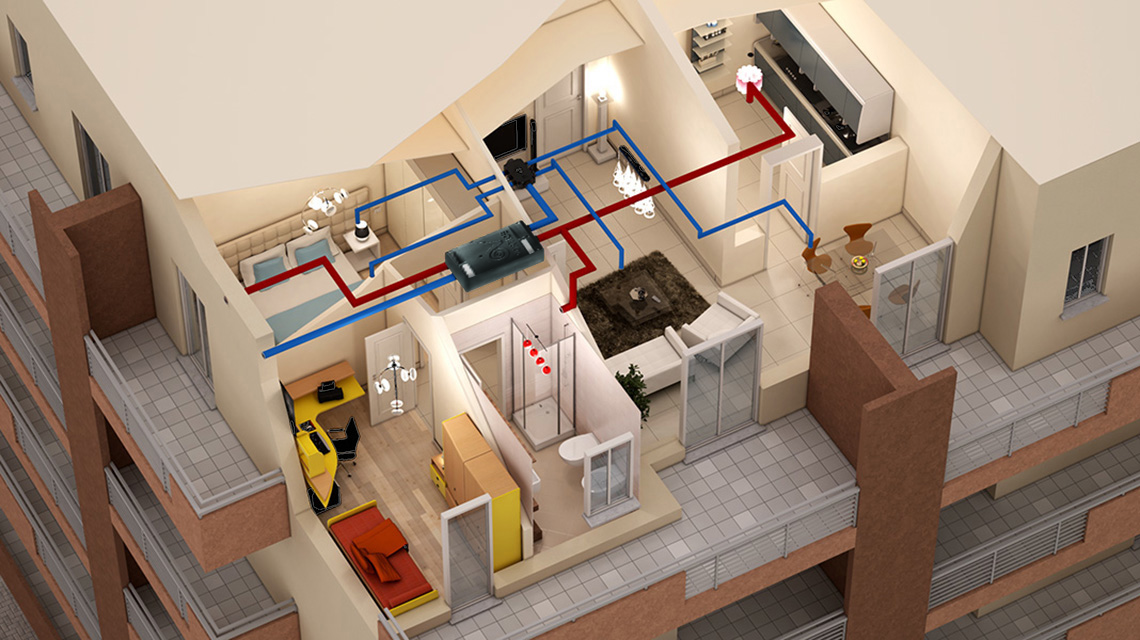

70_EN_11291_Foto_WEB_vort_phantom_ambiente01_89953

Models

Description

Code

False Ceiling Heat Recovery with Full Summer Bypass 200m3/hr

11291

False Ceiling Heat Recovery with Full Summer Bypass 350m3/hr

11293

Features and Benefits

Key Features

Compact design: slimline construction allows for installation in confined spaces such as false ceilings.
High efficiency: equipped with a cross-flow heat exchanger made of high-performance plastic, achieving effective thermal efficiency.
Automatic bypass and frost protection: features a fully mechanical bypass and frost protection system to maintain optimal performance year-round.
Advanced filtration: comes standard with ePM10 50% (F5) filters; an optional ePM1 70% (F7) filter for the supply duct is available to enhance air quality.
Wired LCD controller: includes a hard-wired controller with an LCD display for easy operation, allowing users to set speeds, monitor filter status, and view room temperature and time.
IPX2 rated.

Technical Features

Galvanised and painted steel sheet casing. Brackets for wall-installation included in standard supply.
Aesthetic plastic resin (ABS) front panel. Plastic resin (PPE) internal parts.
125mm spigots on 200m3/hr and 150 spigots on the 350m3/hr.
Pair of electric fans driven by External rotor constant flow regulation EC motors (brushless) with shafts mounted on ball bearings to ensure virtually “maintenance-free” operation, directly coupled to forward-blade centrifugal impellers.
4 operating speeds, can be set independently on installation.
High efficiency counter cross flow heat exchanger, made in plastic resin.
Automatic frost protection to prevent the formation of frost at the heat exchanger.
Three ISO Coarse 90% (G4) class filters, set respectively on the extraction duct, on the air delivery duct and on the by-pass (M5 and F7 filters available as an optional for the delivery duct and the by-pass), easily accessible for periodic maintenance.
Condensate collection tray with drain devices.
