Quadro dMEV Fan 100mm

The Quadro dMEV Fan 100mm is a decentralised continuous mechanical extract fan designed for bathrooms, kitchens, and utility rooms. It operates quietly and efficiently, featuring a hinged door for easy filter maintenance. With programmable boost modes and low power consumption, it provides effective ventilation in residential spaces.

Timer Control

Humidity Control

Models

Description

Code

Centrifugal dMEV 100/4″ Fan

12192

Centrifugal dMEV 100/4″ Fan with Timer and Humidistat

12194

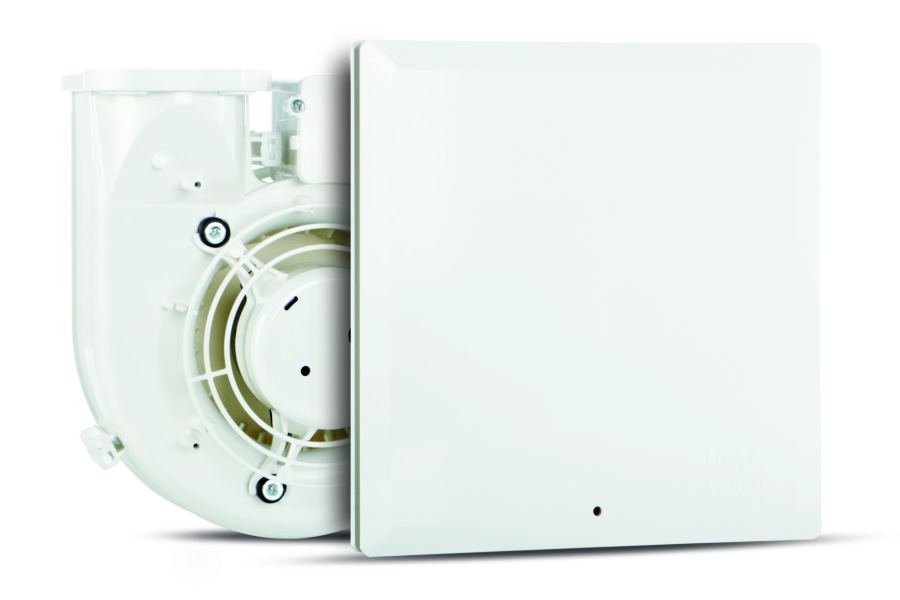

Centrifugal dMEV 100/4″ Inbuilt Fan

12196

Centrifugal dMEV 100/4″ Inbuit Fan with Timer and Humidistat

12198

Features and Benefits

Key Features

Stylish and sleek design: modern aesthetic for seamless integration.
High-efficiency and low energy consumption: optimised for performance and sustainability.
Quiet operation: low noise emissions for minimal disturbance.
80mm to 100mm adaptor included: provides flexible installation options.
Inbuilt ceiling kit: ready-to-install for convenience.
IP45 rated.

Technical Features

EC brushless motor fan: ball-bearing shaft ensures a minimum continuous operation of 30,000 hours at max rated temperature.
Dual performance modes:
- Trickle mode with four pre-set airflow levels based on installation location.
- Boost mode activated via an optional remote switch.
High-performance centrifugal impeller: PBT construction for rigidity, stability, and resistance to chemicals.
Durable rear casing: made of class E ignitability plastic resin (EN ISO 11925-2:2010 compliant).
Flat front panel: easy to clean, made from class E ignitability plastic resin.
Motor housing and filter frame: constructed from robust plastic resin and ABS plastic.
G2 filter with clogged filter alarm: fully compliant with ErP Regulation No. 1253/2014/UE (2nd Tier).
Wall/ceiling installation compatible: nominal discharge diameter: 80mm.
Rubber adaptor ring: allows connection to 100mm ducting for enhanced versatility.

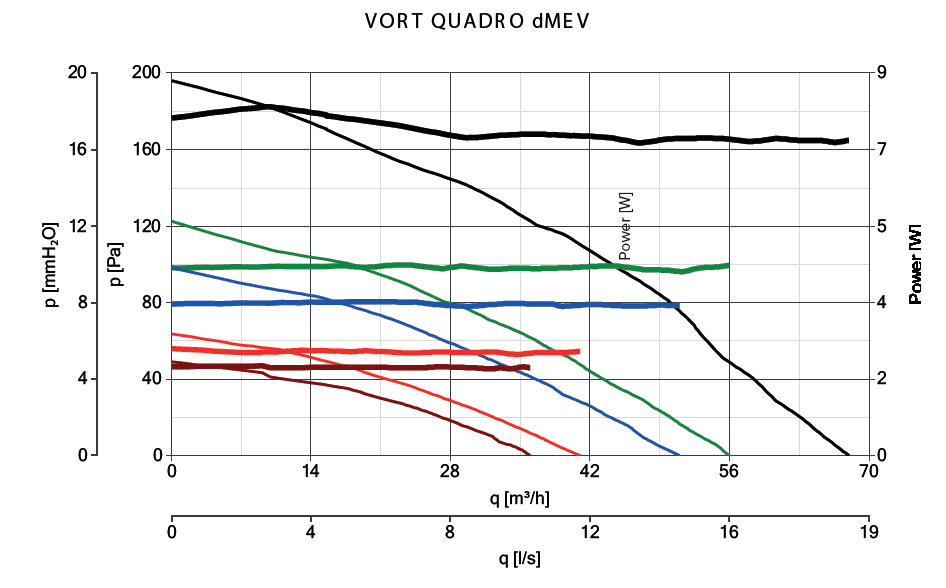

Performance data
