Ariett Inbuilt Centrifugal Bathroom Fan 100mm

The Ariett Inbuilt Centrifugal Fan 100mm is an efficient centrifugal recessed fan suitable for shower rooms, en-suites,WC's and bathrooms. With a 100mm diameter, it delivers an airflow of up to 70 m³/h, ensuring effective moisture and odour extraction. Its IPX4 rating ensures splash-proof protection, making it suitable for wet areas.

Models

Description

Code

01_IT_12011_Foto_WEB_ariett_i_01_73016-600x537

Centrifugal 100/4″ Inbuilt Bathroom Fan

12012

01_IT_12011_Foto_WEB_ariett_i_01_73016-600x537

Centrifugal 100/4″ Inbuilt Bathroom Fan with Timer

12013

Features and Benefits

Key Features

  • Recessed design: seamless design in bathrooms.
  • Dual-speed operation: offers two selectable speeds to suit varying ventilation needs.
  • Shallow exhaust sleeve: compatible with installations near a 90° bend.
  • High extraction capacity: effective to remove moisture and odours.
  • IPX4 rated.

Technical Features

  • Durable ABS casing: shock-proof, UV-resistant plastic to prevent aging.
  • Long-lasting motor: shaded pole, heat-protected, ball-bearing motor with a 30,000+ hour lifespan.
  • Adjustable speed: compatible with Vortice controllers for precise airflow control.
  • Efficient impeller design: forward-curved centrifugal impeller, resistant to aggressive agents.
  • T Model: includes an electronic timer for automatic switch-off (adjustable 3-20 minutes, default 3’).
  • Class II electrical insulation: no earthing required.

Performance Data

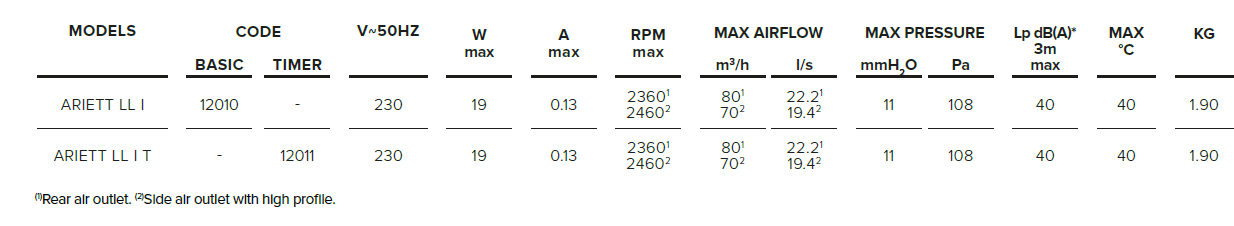

TECHNICAL_Ariett I

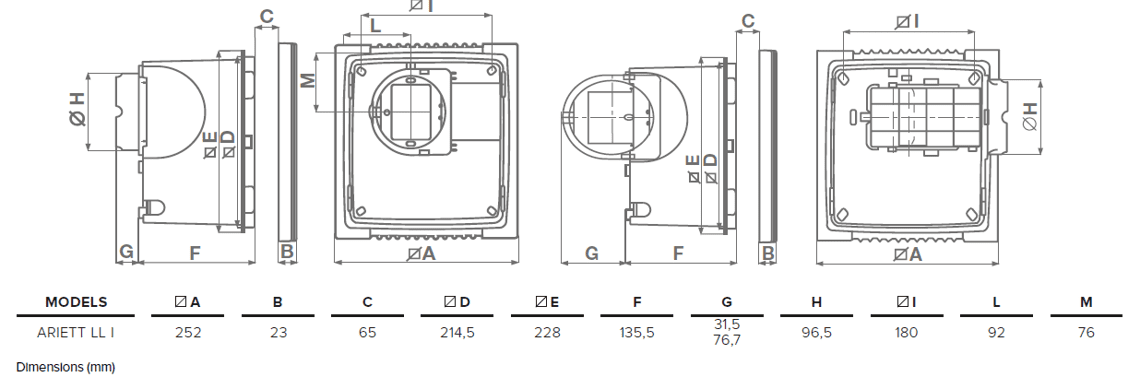

DIMENSIONS_Ariett I
PERFORMANCE_Ariett I

Downloads

PDF Logo

Product Spec Sheet

PDF Logo

Instruction booklet

Related Accessories

Accessories you may require

Fixed Grilles

Fixed Grilles

46540_Insulated Ducting

Insulated Flexible Aluminum Duct

46522_Aluminium Ducting

Flexible Aluminum Duct
