Ariett Centrifugal Bathroom Fan 100mm

The Ariett Centrifugal Fan 100mm is an efficient centrifugal fan suitable for shower rooms, en-suites,WC's and bathrooms. With a 100mm diameter, it delivers an airflow of up to 70 m³/h, ensuring effective moisture and odour extraction. Its IPX4 rating ensures splash-proof protection, making it suitable for wet areas.

Timer Control

Models

Description

Code

Centrifugal 100/4″ Bathroom Fan

11961

Centrifugal 100/4″ Bathroom Fan with Timer

11976

Centrifugal 100/4″Bathroom Fan with Long Life Motor and Timer

11966

Features and Benefits

Key Features

Dual-speed operation: offers two selectable speeds to suit varying ventilation needs.
Shallow exhaust sleeve: compatible with installations near a 90° bend.
High extraction capacity: effective to remove moisture and odours.
IPX4 rated.

Technical Features

Durable ABS casing: shock-proof, UV-resistant plastic to prevent aging.
Long-lasting motor: shaded pole, heat-protected, ball-bearing motor with a 30,000+ hour lifespan.
Adjustable speed: compatible with Vortice controllers for precise airflow control.
Efficient impeller design: forward-curved centrifugal impeller, resistant to aggressive agents.
T Model: includes an electronic timer for automatic switch-off (adjustable 3-20 minutes, default 3’).
Class II electrical insulation: no earthing required.

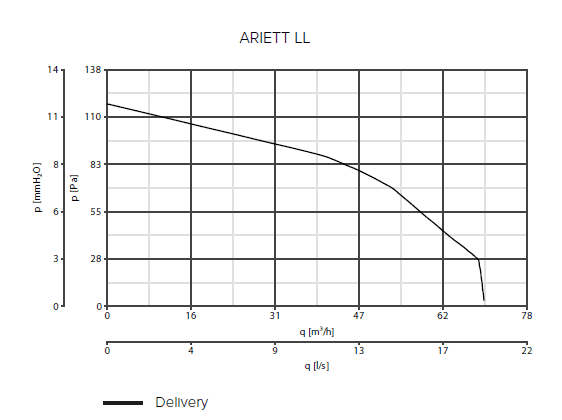

Performance data
