Invisible Mini MVHR Unit

The Invisible Mini is a compact heat recovery ventilation unit designed for void mounted installation in both residential and commercial spaces. It efficiently recovers up to 80% of thermal energy, ensuring optimal air quality with low energy consumption and quiet operation. Featuring EC brushless motors, a high-efficiency heat exchanger, and integrated filtration, it guarantees 100% filtered fresh air. Available in versions with thermodynamic or mechanical bypass and humidity sensors for automatic speed control, the Vort Invisible Mini is an ideal choice for energy-efficient homes.

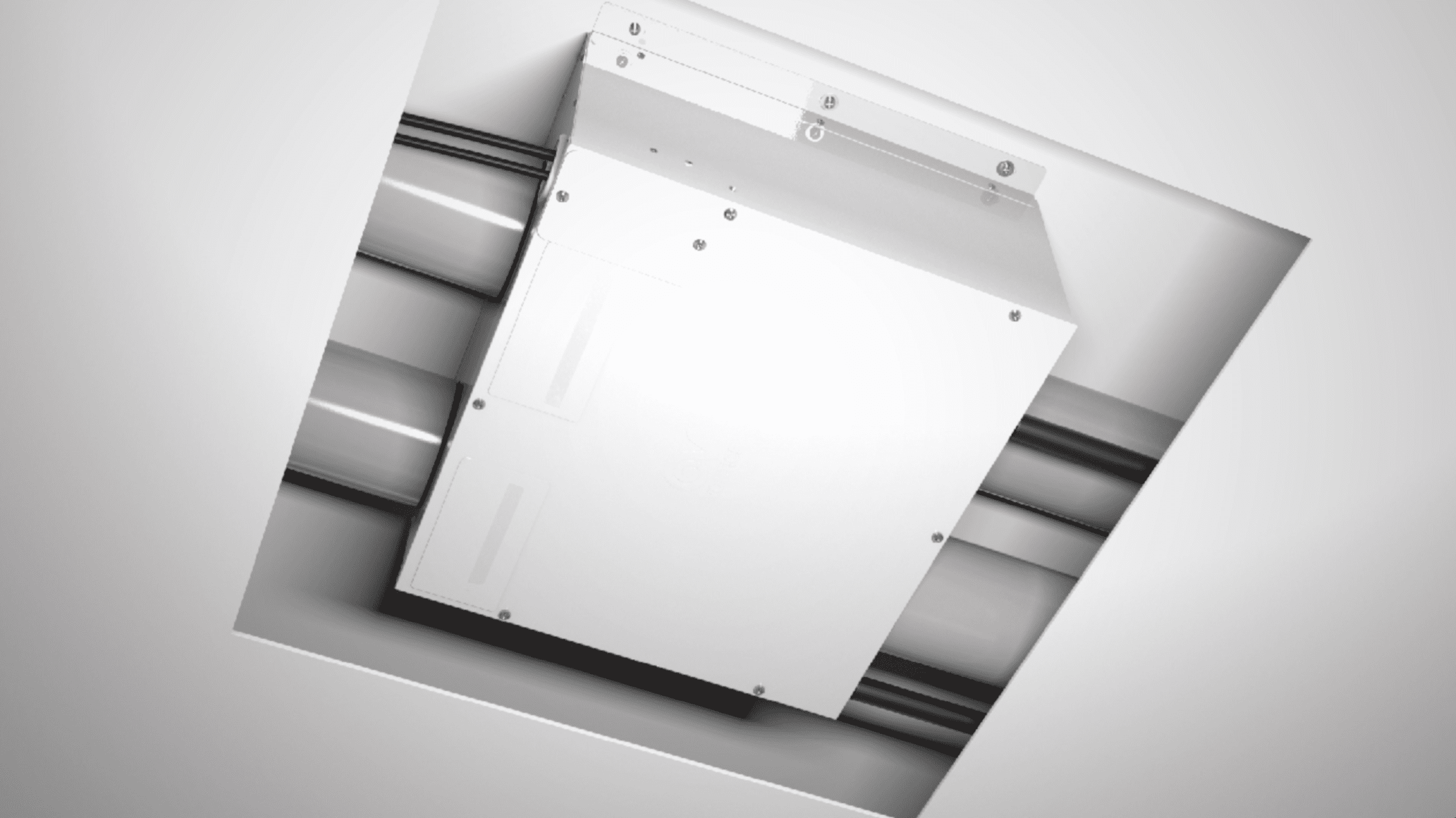

12215,12216,12218_vort invible mini in ceiling void

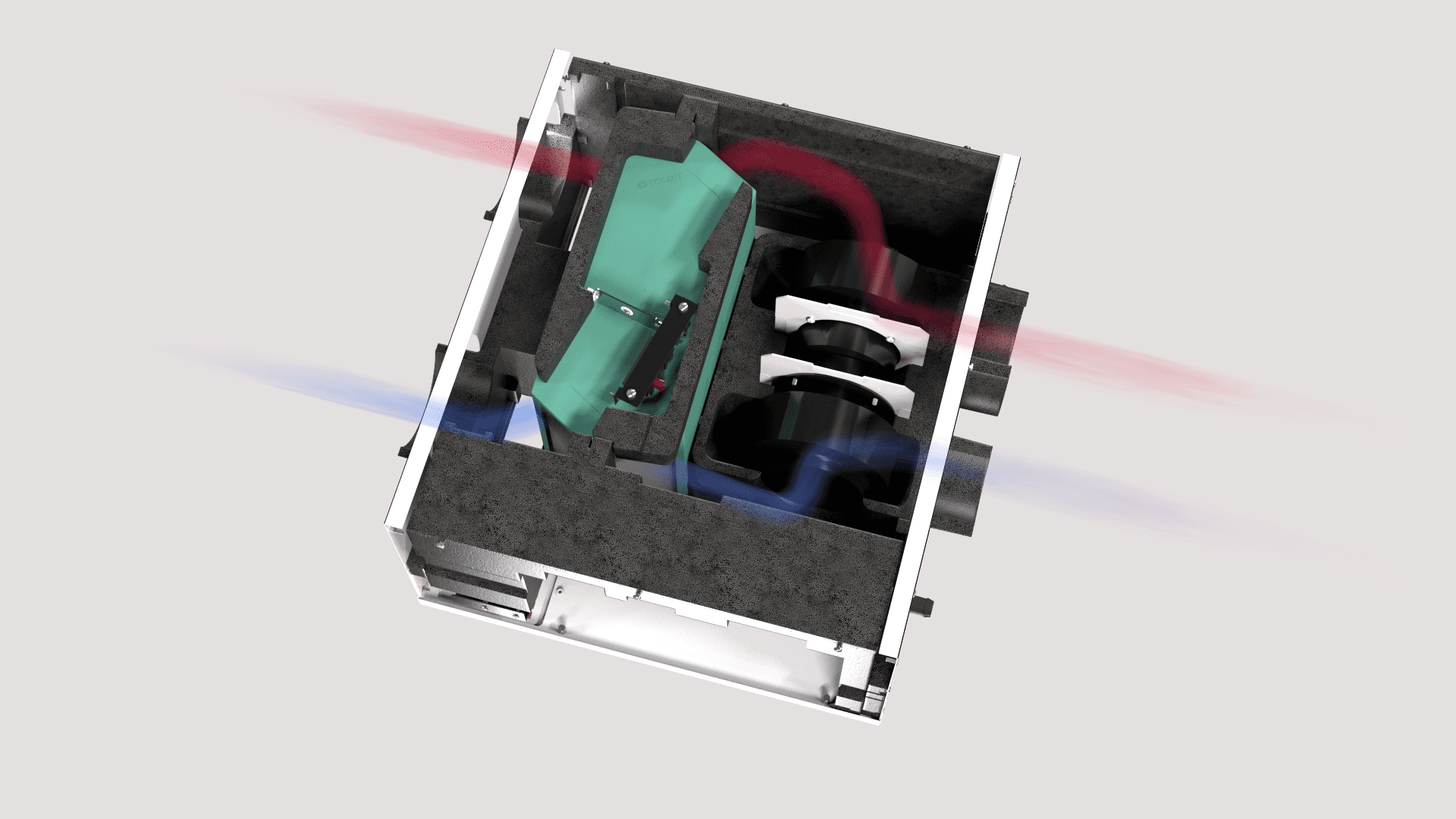

12215,12216,12218_vort invisible mini_02.flussi 2 (0-00-08-02)

Humidity Control

Models

Description

Code

Void Mounted Centralised Mechanical Supply and Extract Unit with Summer Bypass

12215

Void Mounted Centralised Mechanical Supply and Extract Unit with Full Summer Bypass

12216

Void Mounted Centralised Mechanical Supply and Extract Unit with Summer Bypass and Humidistat

12218

Features and Benefits

Key Features

Suitable for false ceiling installations.
Ideal for small spaces: suitable for studio flats, small apartments, and hotel rooms.
Low energy consumption: operates at a maximum power consumption of 64 W, contributing to lower electricity bills.
Quiet operation: maintains a sound pressure level of 36 dB(A) at maximum speed, ensuring a comfortable living environment.
2 speeds.
Flexible duct connections: compatible with both 100 mm and 125 mm ducting, offering versatility in installation.• 100mmØ and 125mmØ spigot option included.
Varied range: summer bypass, full summer bypass and humidity control options.
IPX2 rated.

Technical Features

Available in three versions:
- Summer bypass: thermodynamic bypass which automatically opens or closes based on the temperature of the incoming and outgoing air.
- Full summer bypass: mechanical bypass which provides precise control over ventilation rates and can operate independently of external conditions.
- Full summer bypass with HCS: mechanical bypass which provides precise control over ventilation rates and can operate independently of external conditions and is also equipped with RH sensor, for automatic management of the operating speed.
Casing in galvanised sheet steel painted in white. Brackets, in galvanized and painted sheet steel, necessary for the suspended installation of the appliance, supplied as standard.

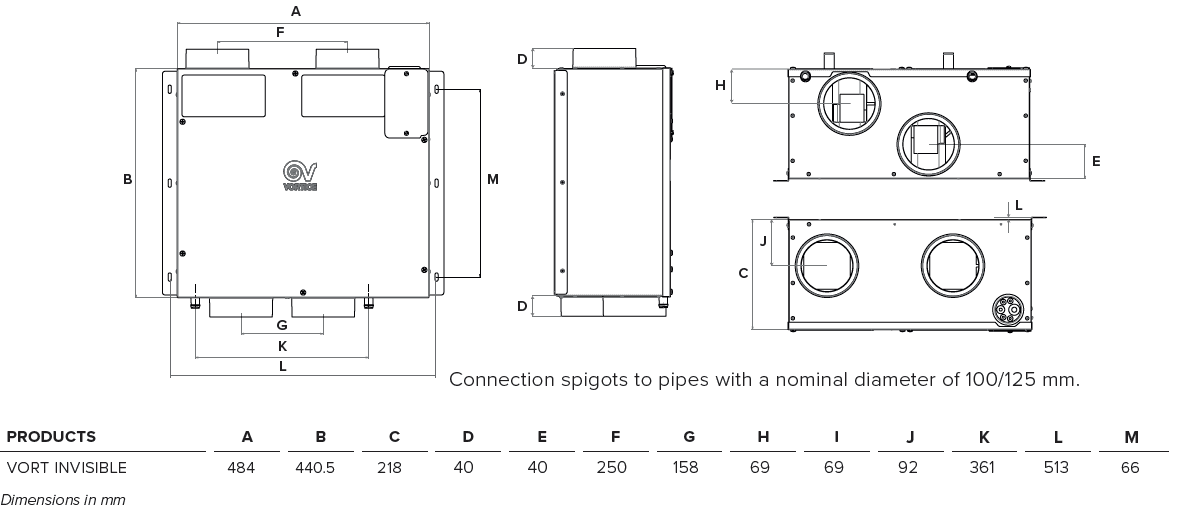

Connection ports for supply and discharge pipes with a nominal diameter of 100mm and 125mm.
Condensate collection tank, complete with “overflow” sensor.
Pair of centrifugal fans driven by 3-speed EC brushless motors (low consumption), independently adjustable.
High-efficiency heat exchanger, made of plastic resin and of the countercurrent cross-flow type.
Mechanical bypass, with filters and is automatically operated.
Pair of ISO Coarse class filters 45% (G3) placed at the extraction and delivery ducts.
Relative humidity sensor integrated in the product (adjustable intervention threshold).

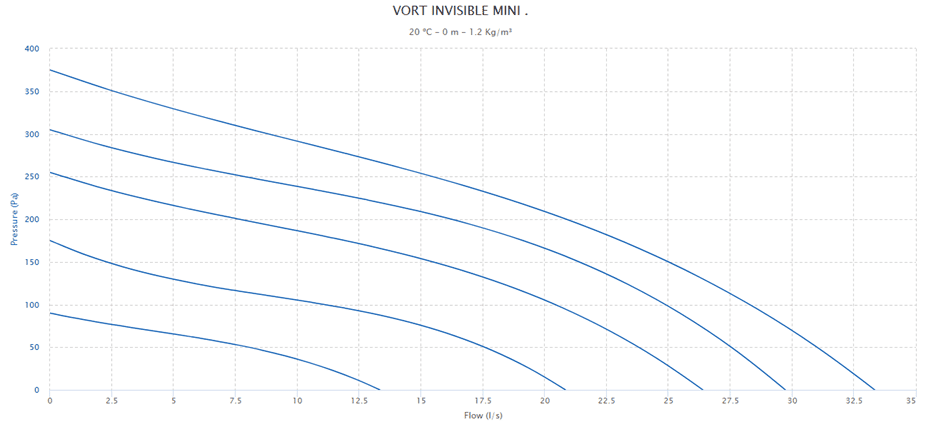

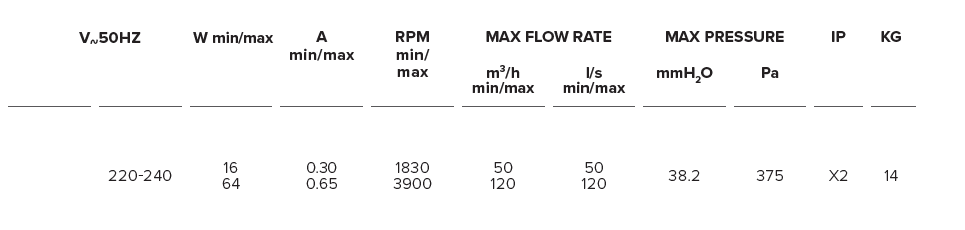

Performance Data
