Vario Inbuilt Supply and Extract Axial Fan

The Vario inbuilt supply and extract axial fan is a high-performance axial fan designed for both supply and extract ventilation. Perfect for environments like schools, shops, pubs and restaurants and other commercial spaces. Its super boosted performance and long life motor make it an excellent choice for continuous, reliable operation in high traffic commercial settings.

70_EN_12456_Foto_WEB_vortice_vario_i_01_71194

01_IT_12416_Foto_WEB_vortice_vario_i_03_72842

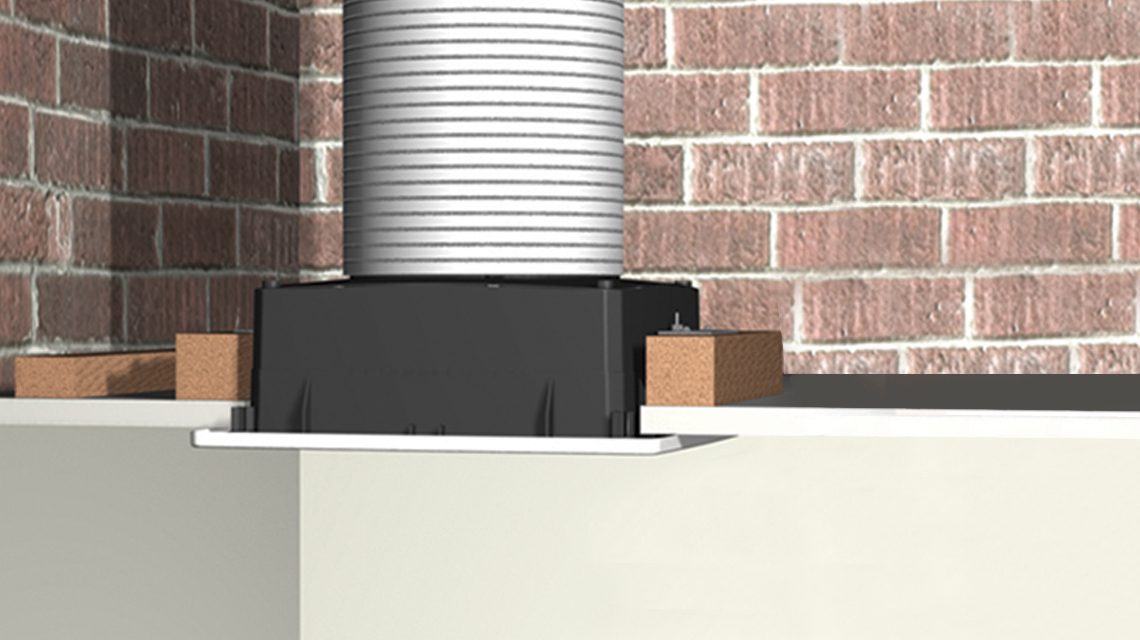

70_EN_12613_Foto_WEB_vortice_vario_i_ambiente02_71235

Models

Description

Code

150/6″ Supply and Extract Inbuilt Fan with Auto Shutters

12613

150/6″ Supply and Extract Inbuilt Fan with Auto Shutters, Long Life Motor and High Performance

12616

230/9″ Supply and Extract Inbuilt Fan with Auto Shutters

12453

230/9″ Supply and Extract Inbuilt Fan with Auto Shutters, Long Life Motor and High Performance

12456

300/12″ Supply and Extract Inbuilt Fan with Auto Shutters

12413

300/12″ Supply and Extract Inbuilt Fan with Auto Shutters Long Life Motor and High Performance

12416

Features and Benefits

Key Features

Versatile installation options: offering a wide range of installation possibilities to fit various spaces, including windows, walls, false ceilings and roofs.
Reversible operation: allows the fan to intake fresh air or extract stale air, giving full control over the ventilation process based on your needs.
Multiple model versions available: variety to suit your preferences and requirements.
- P (Pullcord): operates the fan with a pullcord (only extract).
- LL (Long Life) and High Performance: Features a durable motor for extended lifespan (up to 30,000 hours) and high-performance motors that are designed to move increased airflows.
- Auto shutters: preventing unwanted air backflow.
- Sensor Options for Enhanced Functionality: variety of sensors, including humidity, temperature, smoke, and presence sensors, to enable automatic operation, ensuring fresh air when needed and reducing energy usage when the room is empty.
- IPX4 rated

Technical Features

White, shock-proof ABS plastic panels with UV resistance to prevent aging from sunlight exposure.
Heat-protected motors with shafts mounted on:
Bushings with self-centering and self-lubricating necks for low noise emissions.
Ball bearings (LL models) for durability, ensuring at least 30,000 hours of continuous operation at maximum plate temperature.
Axial impellers made from chemical-resistant plastic resin, featuring saber-shaped blades for high performance and low
noise.
Exhaust duct closing fins to prevent air backflow and odours when switched off (automatic on A models).
Compatible with optional Timers, as well as temperature, humidity, smoke, and presence sensors.
Fully compliant with Regulation No. 327/2011/EU.
Electrical insulation class: II (no grounding required).
