Tiracamino Chimney Fan

The Tiracamino chimney fan is a weatherproof chimney fan designed to enhance chimney efficiency by improving smoke extraction. It’s durable, energy-efficient, and easy to install on rooftops, offering quiet operation and reliable performance. Ideal for residential and commercial use, it helps boost airflow in chimneys, ensuring effective venting and combustion.

tiracamino_1_15000

Models

Description

Code

tiracamino_1_15000

Chimney Fan

15000

Features and Benefits

Key Features

  • Smoke extraction: designed for fireplaces, removes smoke efficiently.
  • Dual functionality: can be used as a standard extractor Fan when not in us.
  • High-temperature motor: ball-bearing induction motor withstands up to 200°C.
  • Soot reducing blades: advanced design minimises buildup.
  • Variable speed control: comes with C1.5 speed controller and base frame.
  • Weatherproof and durable: steel construction with anti-corrosion polyester resin coating.
  • Secure installation: includes steel safety cable for anchoring.
  • Protective grille: steel safety grille with anti-bird rings.
  • Not suitable for gas fires.
  • IPX4 rated.

Technical Features

  • High temperature resistance: equipped with a ball-bearing-mounted induction motor capable of withstanding prolonged operation at temperatures up to approximately 200°.
  • Advanced blade design: features a blade design that minimises soot accumulation, ensuring consistent performance and reducing maintenance needs. ​
  • Durable construction from weatherproof steel with anti-corrosion polyester resin protection, ensuring longevity even under harsh environmental conditions. ​
  • Safety features: includes a steel safety cable for secure anchoring and a protective grille with anti-bird rings to prevent foreign object entry. ​
  • Variable speed control comes with a variable speed controller (C1.5) and base frame, allowing users to adjust the Fan’s speed according to their needs. ​
  • Flue compatibility: designed for flues with minimum dimensions of 15×15 cm or a 17 cm diameter; smaller flue sizes may reduce the fan’s efficiency.

Performance Data

TECHNICAL_TIRACAMINO

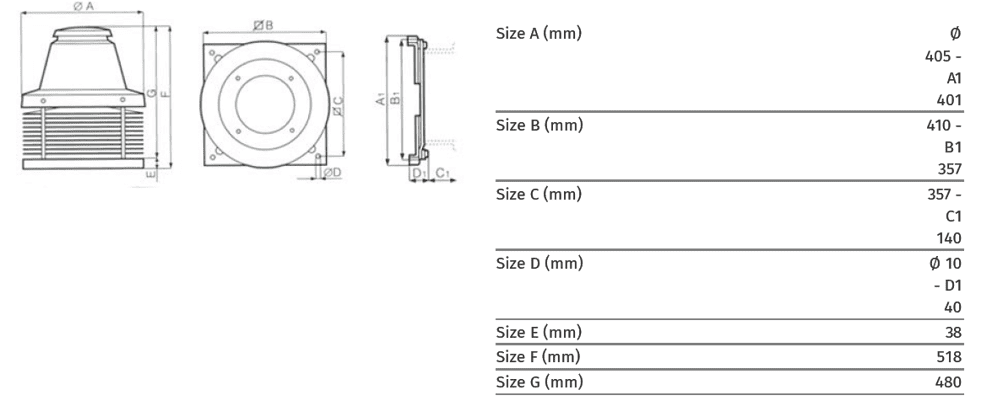

DIMENSIONS_TIRACAMINO
