Record Axial Bathroom Fan 100mm

The Record Axial Fan 100mm is a rectangular through wall axial fan suitable for bathrooms and en suites. With a 100mm diameter, it delivers up to 85 m³/h airflow, ensuring effective moisture extraction.

01_IT_11630_Foto_WEB_record_02_105451
01_IT_11630_Foto_WEB_record_03_105454

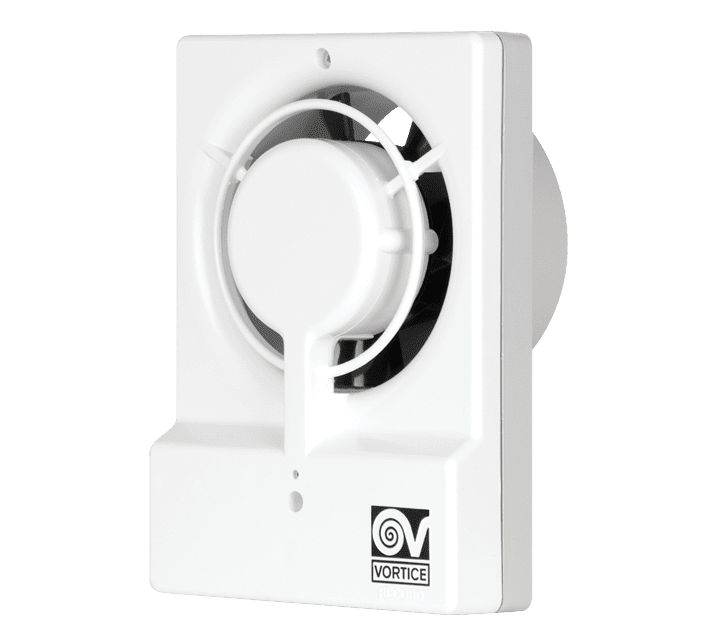

01_IT_11630_Foto_WEB_record_04_105457
01_IT_11630_Foto_WEB_record_05_105460

Timer Control

Models

Description

Code

01_IT_11630_Foto_WEB_record_02_105451

Through Wall Rectangular Axial 100/4″ Fan with Timer

11630

Features and Benefits

Key Features

  • Built-in timer: equipped with an adjustable timer ranging from 3 to 20 minutes.
  • Quiet operation: designed to minimise noise providing efficient ventilation without causing significant disturbance. ​
  • IPX4 rated.

Technical Features

  • Durable construction: made from wear-resistant ABS casing, these fans are built to withstand daily use.
  • Made of polystyrene (PS), ensuring durability and resistance.
  • Shaded-pole motor with bushings and an integrated thermal fuse for reliable thermal protection.
  • Electronic timer: adjustable shut-off timer, settable between 3 and 20 minutes during installation (default setting: 3 minutes).
  • Speed control: compatible with Vortice controllers allowing performance.

Performance data

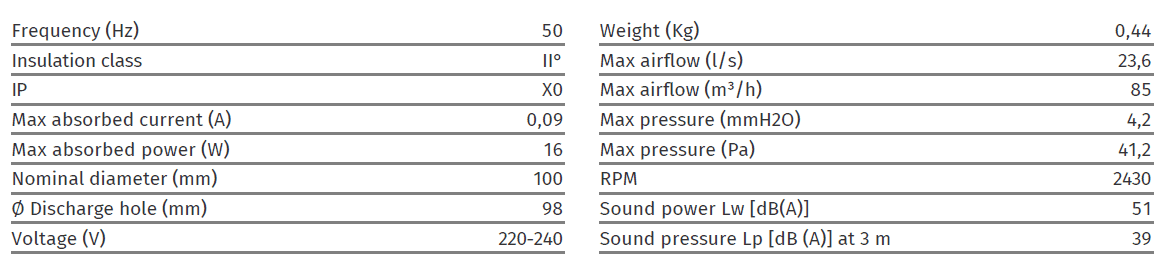

TECHNICAL_Record
DIMENSIONS_Record

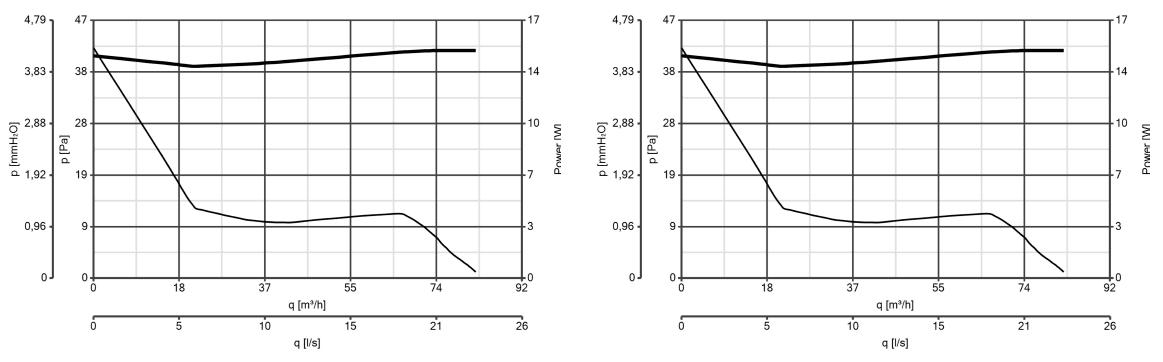

PERFORMANCE_Record

Downloads

PDF Logo

Product Spec Sheet

Download
PDF Logo

Instruction booklet

Download
