Quadro Super Inbuilt Centrifugal Utility/Kitchen Fan 100mm

The Quadro Super Inbuilt Centrifugal Fan 100mm is an efficient centrifugal recessed fan suitable for utility and kitchens. With a 100mm diameter, it delivers an airflow between 140 m³/h and 275 m³/h, ensuring effective moisture and odour extraction. Its IPX4 rating ensures splash-proof protection, making it suitable for wet areas. The fan also features a high extraction capacity to overcome pressure loss when long ducts are used. The two-speed motor allows for flexible operation, and the fan is compatible with various ducting options, including rigid, flat, and flexible ducting.

01_IT_12017_Foto_WEB_vort_quadro_i_02_70837

70_EN_11638_Foto_WEB_vort_quadro_ambiente02_148230

Timer Control

Humidity Control

Models

Description

Code

Centrifugal 100/4″ Inbuilt kitchen Fan

12223

Centrifugal 100/4″ Inbuilt Kitchen Fan with Timer

12224

Centrifugal 100/4″Inbuilt Kitchen Fan with Timer and Humidistat

12225

Features and Benefits

Key Features

Dual-speed operation: offers two selectable speeds to suit varying ventilation needs.
Flush mounted: features a modern white ABS plastic grille with a recessed design, ensuring a flush fit into walls or ceilings.
Adjustable timer option: built-in timer allows for adjustable operation time between 3 to 20 minutes, ensuring optimal ventilation after use.
Humidity control option: integrated RH sensor that activates the fan automatically.
High extraction capacity: delivers airflow rates effectively removing moisture and odours.
Quiet operation: operates at a sound pressure level ensuring minimal noise disturbance.
Versatile installation: suitable for wall and ceiling mounting, adaptable to various room layouts.
IPX4 rated.

Technical Features

Durable white ABS resin casing: shock-proof, UV-resistant, and prevents ageing from sun exposure, ensuring long-lasting performance.
3-speed fan motor: features heat-protected motors with shafts mounted on ball bearings, offering at least 30,000 hours of continuous service at maximum plate temperature.
Recessed boxes in black plastic resin (PP), loaded to give suitable resistance to the parts to be walled, rear exhaust, pre-set for side exhaust.
Speed adjustment: compatible with Vortice accessory devices for convenient speed control.
Forward-curved centrifugal impellers: made from plastic resin, these impellers are resistant to aggressive agents and ensure optimal airflow performance.
Dishwasher-Safe air filters: easy to clean and maintain, enhancing the convenience and hygiene of the fan.
Integrated non-return valves: rrevent unwanted inflows of air and bad odors when the appliance is switched off.
Electronic timer (T Models): automatically switches off the product after a pre-set period (3 to 20 minutes) for energy efficiency.
Humidity sensor (T-HCS Models): integrated RH sensor that activates the fan automatically when humidity exceeds a predefined threshold (60%, 70%, 80%, or 90%), ensuring optimal ventilation in moisture-prone areas.
Adjustable timer on T-HCS Models: electronic timer ensures automatic shut-off once humidity levels return to below the pre-set threshold, with a timer range from 3 to 20 minutes.

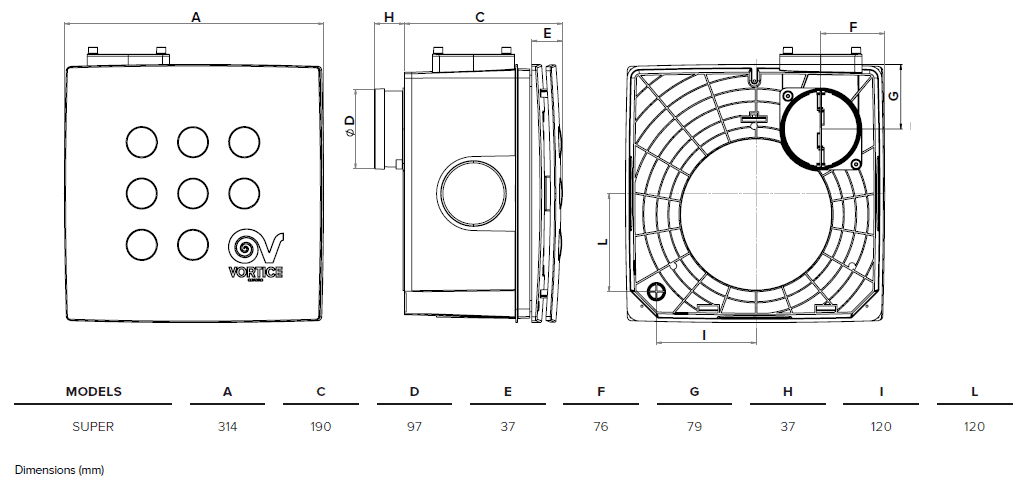

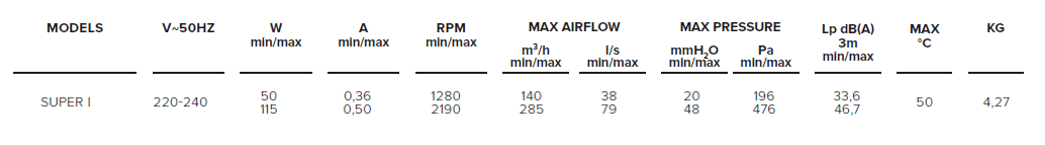

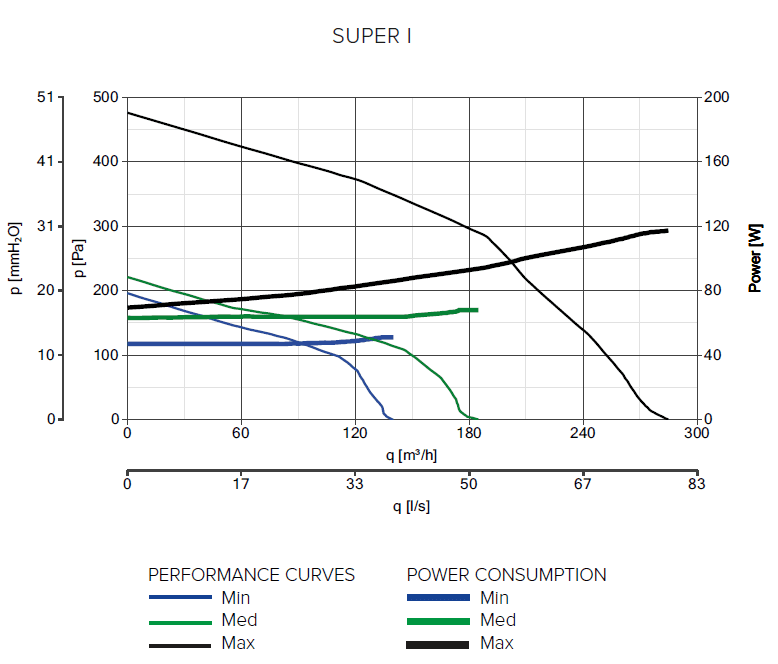

Performance data
