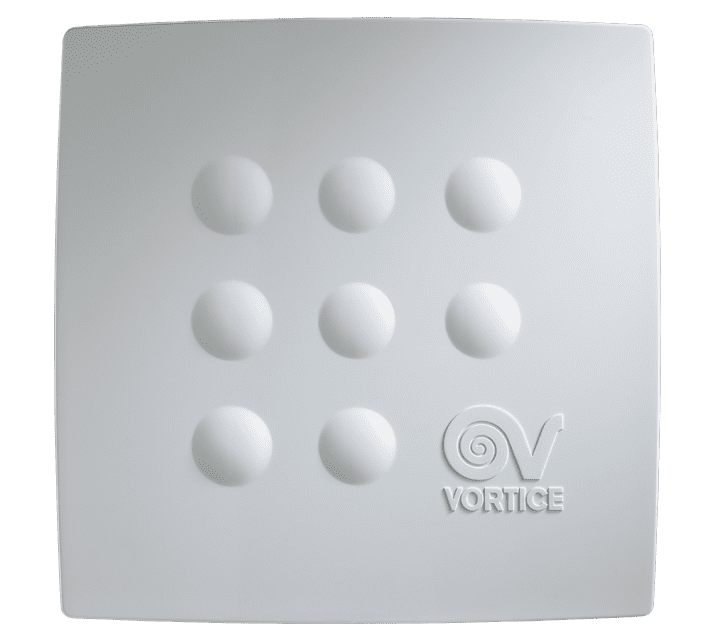

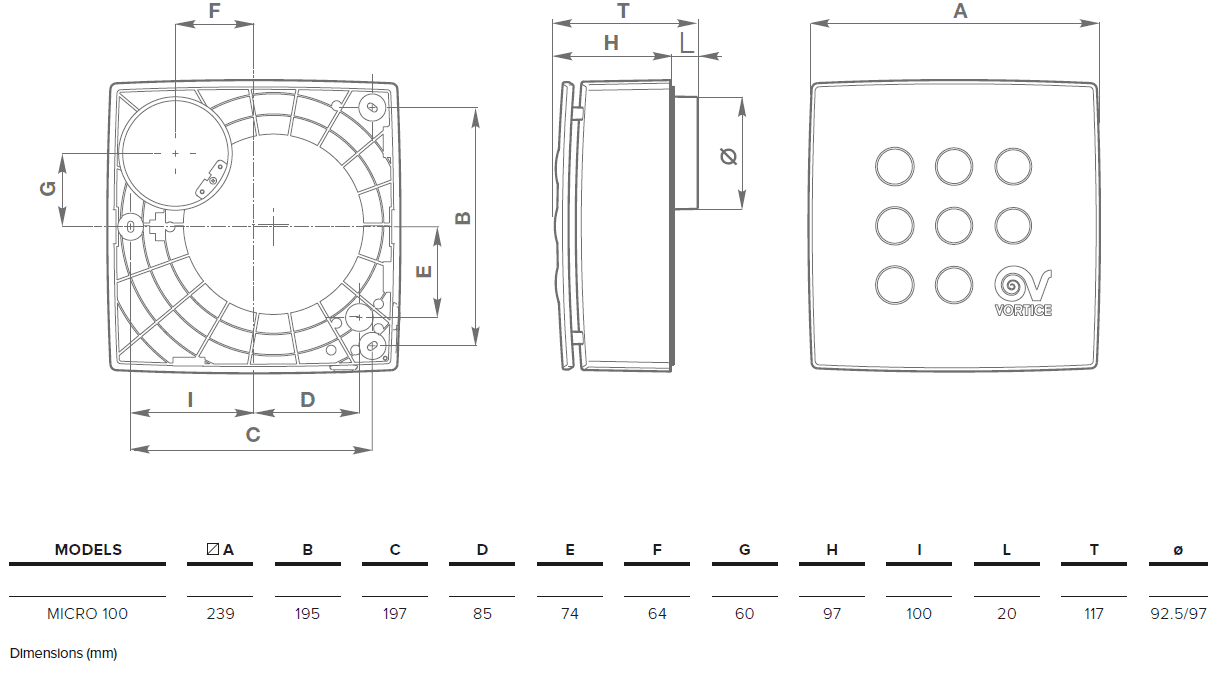

Quadro Micro Centrifugal Bathroom Fan 100mm

The Vortice Quadro Micro 100/4" is an efficient centrifugal fan suitable for shower rooms, en-suites,WC's and bathrooms. With a 100mm diameter, it delivers an airflow between 65 m³/h and 90 m³/h, ensuring effective moisture and odour extraction. Its IPX4 rating ensures splash-proof protection, making it suitable for wet areas. The fan also features a high extraction capacity to overcome pressure loss when long ducts are used. The two-speed motor allows for flexible operation, and the fan is compatible with various ducting options, including rigid, flat, and flexible ducting.

01_IT_11936_Foto_WEB_vort_quadro_02_70678

01_IT_11936_Foto_WEB_vort_quadro_03_70688

01_IT_11936_Foto_WEB_vort_quadro_01_70668

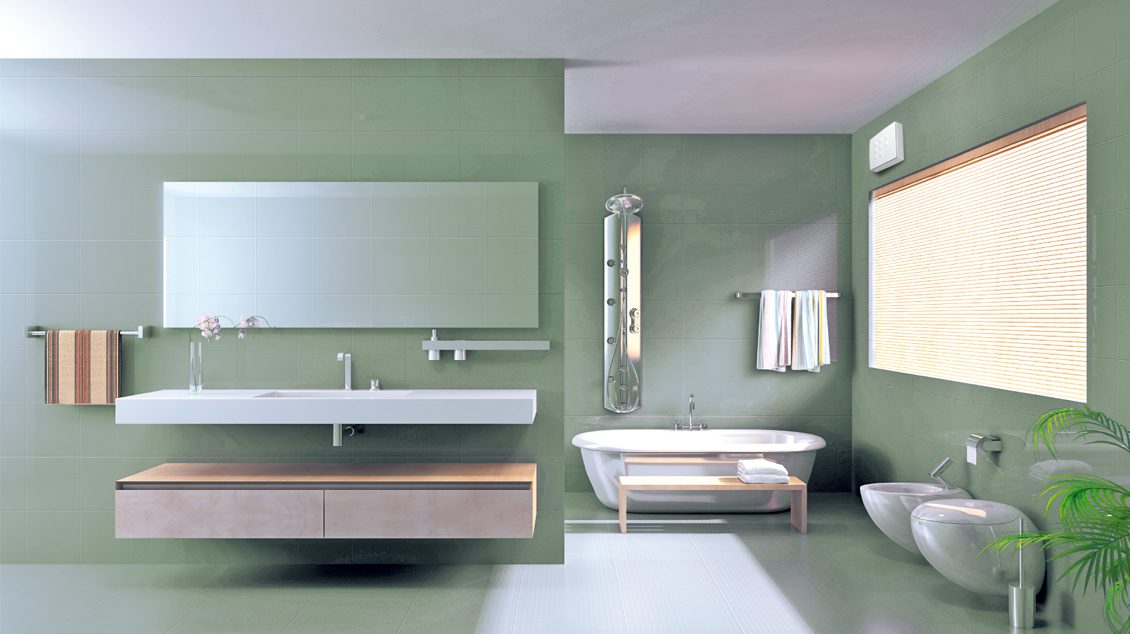

70_EN_11638_Foto_WEB_vort_quadro_ambiente01_148229

Timer Control

Humidity Control

Models

Description

Code

Centrifugal 100/4″ Bathroom Fan

11936

Centrifugal 100/4″ Bathroom Fan with Timer

11940

Centrifugal 100/4″ Bathroom Fan with Timer and Humidistat

11945

Features and Benefits

Key Features

Dual-speed operation: offers two selectable speeds to suit varying ventilation needs.
Adjustable timer option: built-in timer allows for adjustable operation time between 3 to 20 minutes, ensuring optimal ventilation after use.
Humidity control option: integrated RH sensor that activates the fan automatically.
High extraction capacity: delivers airflow rates effectively removing moisture and odours.
Quiet operation: operates at a sound pressure level ensuring minimal noise disturbance.
Versatile installation: suitable for wall and ceiling mounting, adaptable to various room layouts.
IPX4 rated.

Technical Features

Durable white ABS resin casing: shock-proof, UV-resistant, and prevents ageing from sun exposure, ensuring long-lasting performance.
3-speed fan motor: features heat-protected motors with shafts mounted on ball bearings, offering at least 30,000 hours of continuous service at maximum plate temperature.
Speed adjustment: compatible with Vortice accessory devices for convenient speed control.
Forward-curved centrifugal impellers: made from plastic resin, these impellers are resistant to aggressive agents and ensure optimal airflow performance.
Dishwasher-safe air filters: easy to clean and maintain, enhancing the convenience and hygiene of the fan.
Integrated non-return valves: prevent unwanted inflows of air and bad odors when the appliance is switched off.
Electronic timer (T Models): automatically switches off the product after a pre-set period (3 to 20 minutes) for energy efficiency.
Humidity sensor (T-HCS Models): integrated RH sensor that activates the fan automatically when humidity exceeds a predefined threshold (60%, 70%, 80%, or 90%), ensuring optimal ventilation in moisture-prone areas.
Adjustable timer on T-HCS Models: electronic timer ensures automatic shut-off once humidity levels return to below the pre-set threshold, with a timer range from 3 to 20 minutes.

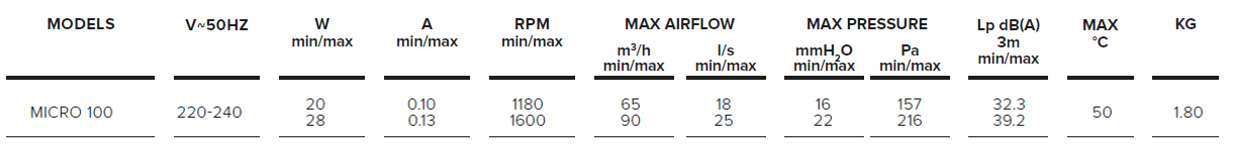

Performance data
