Filo Axial Kitchen Fan 150mm

The Filo Axial Fan 150mm is an ultra-slim, energy-efficient axial fan designed for kitchens. With a 150mm diameter, it delivers up to 335 m³/h airflow, ensuring effective moisture extraction. It features IPX4 splash-proof protection, making it suitable for wet areas.The fan also features an integral backdraught shutter to prevent unwanted air re-entry when the fan is off.

01_IT_11123_Foto_WEB_punto_filo_02_70106

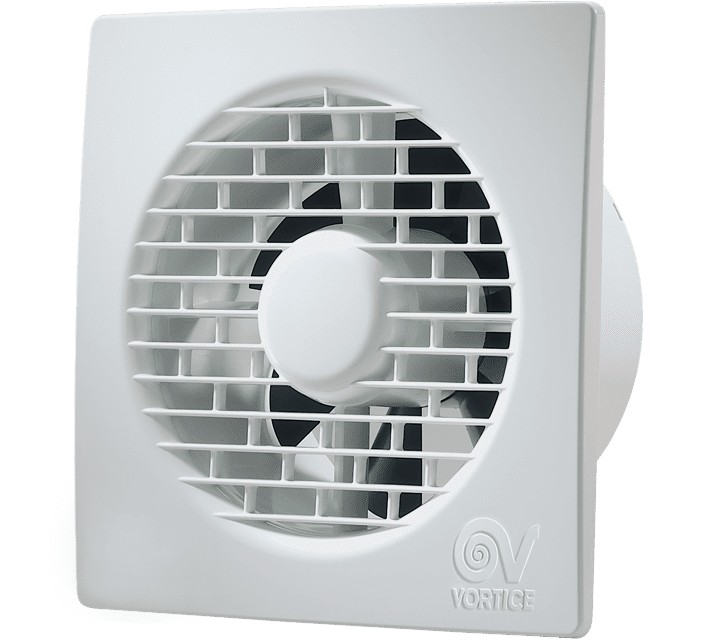

01_IT_11123_Foto_WEB_punto_filo_04_70110

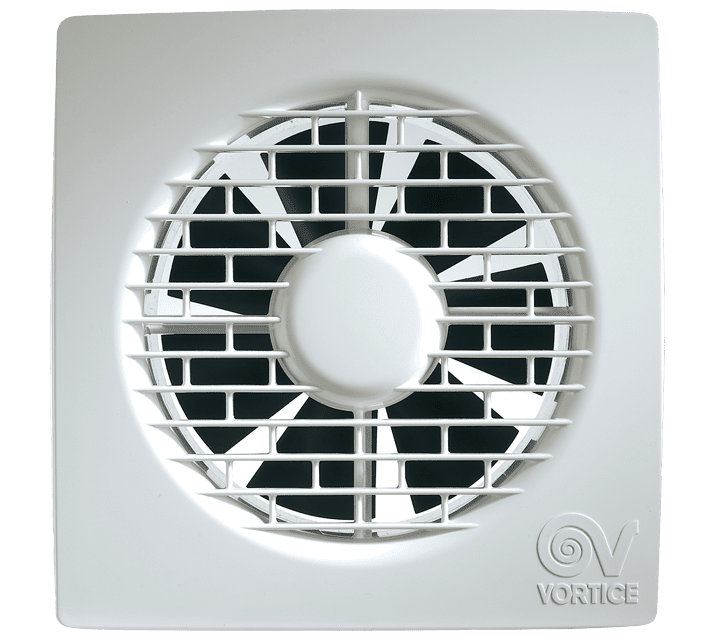

01_IT_11123_Foto_WEB_punto_filo_01_70104

Timer Control

Humidity Control

PIR Control

Models

Description

Code

01_IT_11123_Foto_WEB_punto_filo_02_70106

Slimline Axial Kitchen Fan 150/6″ Standard

11125

01_IT_11123_Foto_WEB_punto_filo_02_70106

Slimline Axial Kitchen Fan 150/6″with Timer

11129

01_IT_11123_Foto_WEB_punto_filo_02_70106

Slimline Axial Kitchen Fan 150/6″ with Timer and Humidistat

11176

Features and Benefits

Key Features

  • Compact design: slim 17mm profile with a sleek, minimal aesthetic.
  • Colour options: choose between White or Black finishes to complement modern bathroom decor.
  • Butterfly backdraught shutter: effectively prevents air backflow for improved performance.
  • IPX4 rated.

Technical Features

  • Durable ABS casing: shock-proof, UV-resistant.
  • Quiet and efficient motor: shaded pole or ball-bearing (LL models) for low noise and longevity.
  • Optimised airflow: airfoil-shaped axial impellers for high performance with minimal noise.
  • Timer models (T): auto shut-off (3–20 min, default 3 min).
  • Humidity sensor models (T-HCS): auto-activates fan based on RH levels (60%, 70%, 80%, 90%).

Performance Data

TECHNICAL_Punto Filo 6

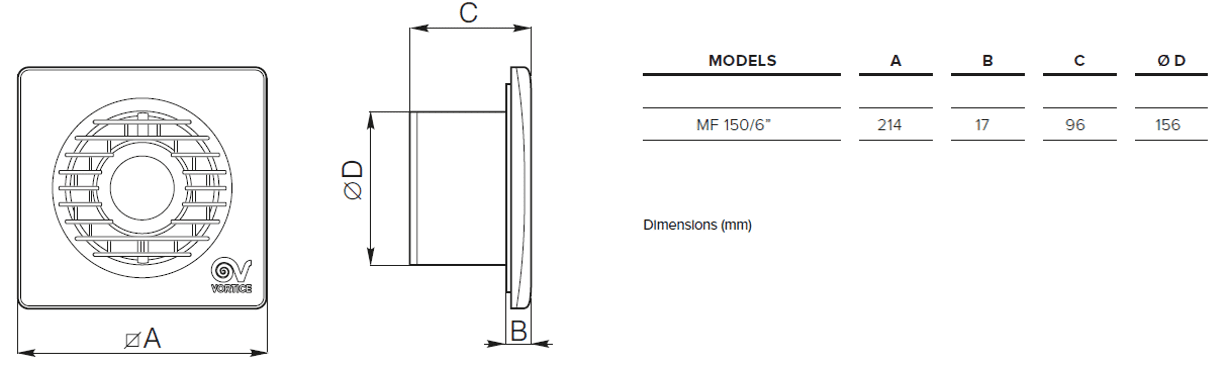

DIMENSIONS_Punto Filo 6
PERFORMANCE_Punto Filo 6

Downloads

PDF Logo

Product Spec Sheet

Download
PDF Logo

Instruction booklet

Download

Related Accessories

Accessories you may require

Accessories

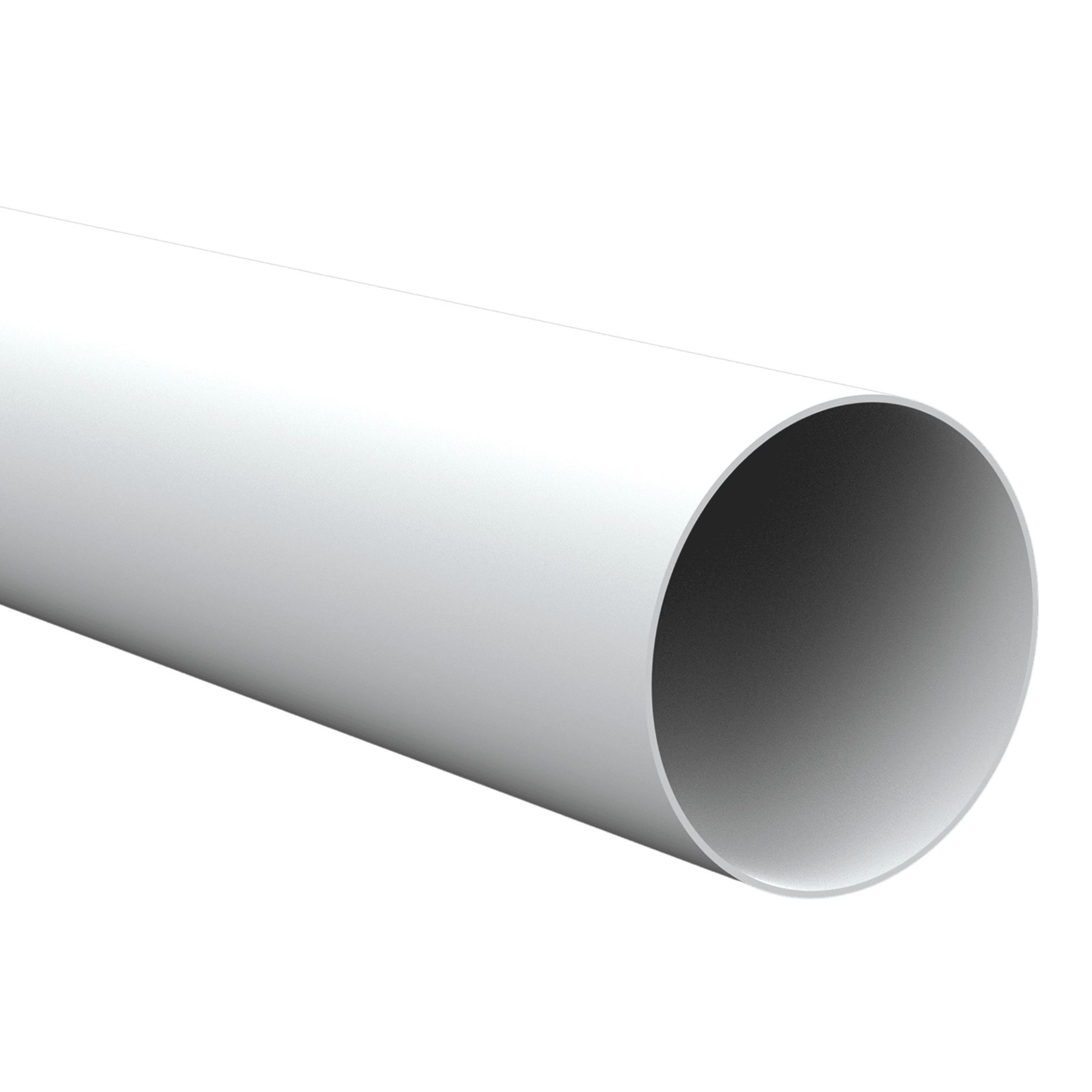

446182_ Wall liners
