Filo Axial Utility Fan 120mm

The Filo Axial Fan 120mm is an ultra-slim, energy-efficient axial fan designed for utility rooms. With a 125mm diameter, it delivers up to 175 m³/h airflow, ensuring effective moisture extraction. It features IPX4 splash-proof protection, making it suitable for wet areas.The fan also features an integral backdraught shutter to prevent unwanted air re-entry when the fan is off.

01_IT_11123_Foto_WEB_punto_filo_02_70106

01_IT_11123_Foto_WEB_punto_filo_04_70110

01_IT_11123_Foto_WEB_punto_filo_01_70104

Timer Control

Humidity Control

PIR Control

Models

Description

Code

Axial Utility 120/5″ Fan with Integral Backdraught Shutter

11124

Axial Utility 120/5″ Fan with Integral Backdraught Shutter and Timer

11128

Axial Utility 120/5″ Fan with Integral Backdraught Shutter, Timer and Humidistat

11149

Features and Benefits

Key Features

Compact design: slim 17mm profile with a sleek, minimal aesthetic.
Colour options: Choose between White or Black finishes to complement modern bathroom decor.
Butterfly backdraught shutter: effectively prevents air backflow for improved performance.
IPX4 rated.

Technical Features

Durable ABS casing: shock-proof, UV-resistant.
Quiet and efficient motor: shaded pole or ball-bearing (LL models) for low noise and longevity.
Optimised airflow: airfoil-shaped axial impellers for high performance with minimal noise.
Timer models (T): Auto shut-off (3–20 min, default 3 min).
Humidity sensor models (T-HCS): auto-activates fan based on RH levels (60%, 70%, 80%, 90%).
Presence sensor models (PIR): auto-activates fan when occupants are detected, with a timer-controlled shut-off.

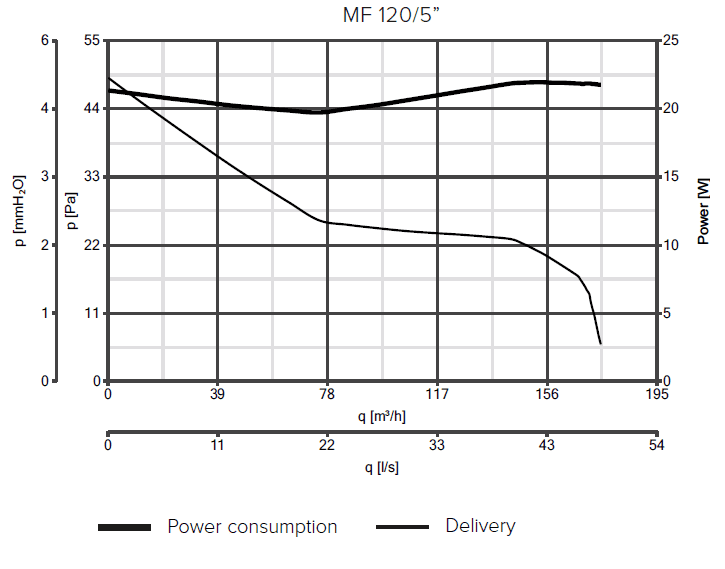

Performance Data
