Evo Gold Axial Bathroom Fan 100mm

The Evo Gold Axial Fan 100mm is an energy-efficient axial fan designed for bathrooms and en-suites, featuring a stylish metallic finish for a premium look. With a 100mm diameter, it delivers an airflow between 65 m³/h and 95 m³/h, ensuring effective moisture and odour extraction. The fan operates at a low noise level of 26.9 dB(A) providing a quiet environment. Its long-life motor ensures reliable performance for years to come. The IP45 rating ensures splash-proof protection, making it suitable for wet areas. The fan also features an integral backdraught shutter to prevent unwanted air re-entry when the fan is off.

Timer Control

Humidity Control

PIR Sensor

IP45 Rated

Low Noise

Models

Description

Code

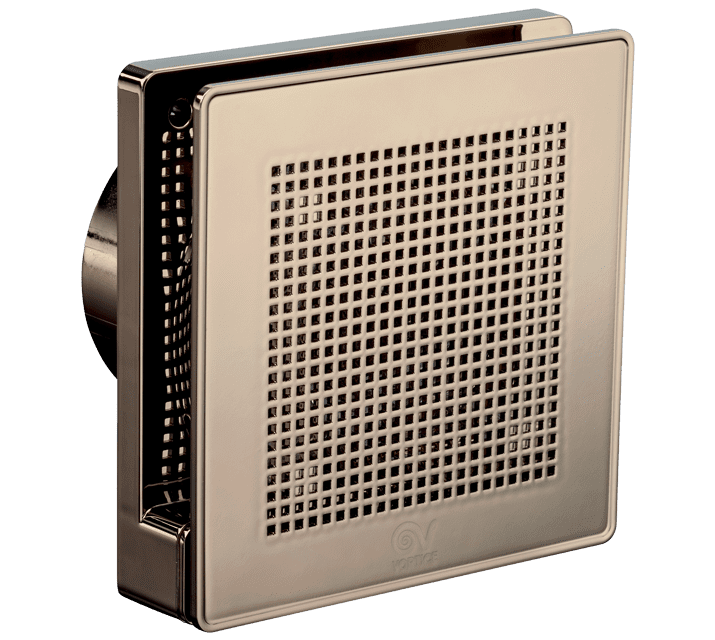

01_IT_11306_Foto_WEB_punto_evo_gold_01_71531

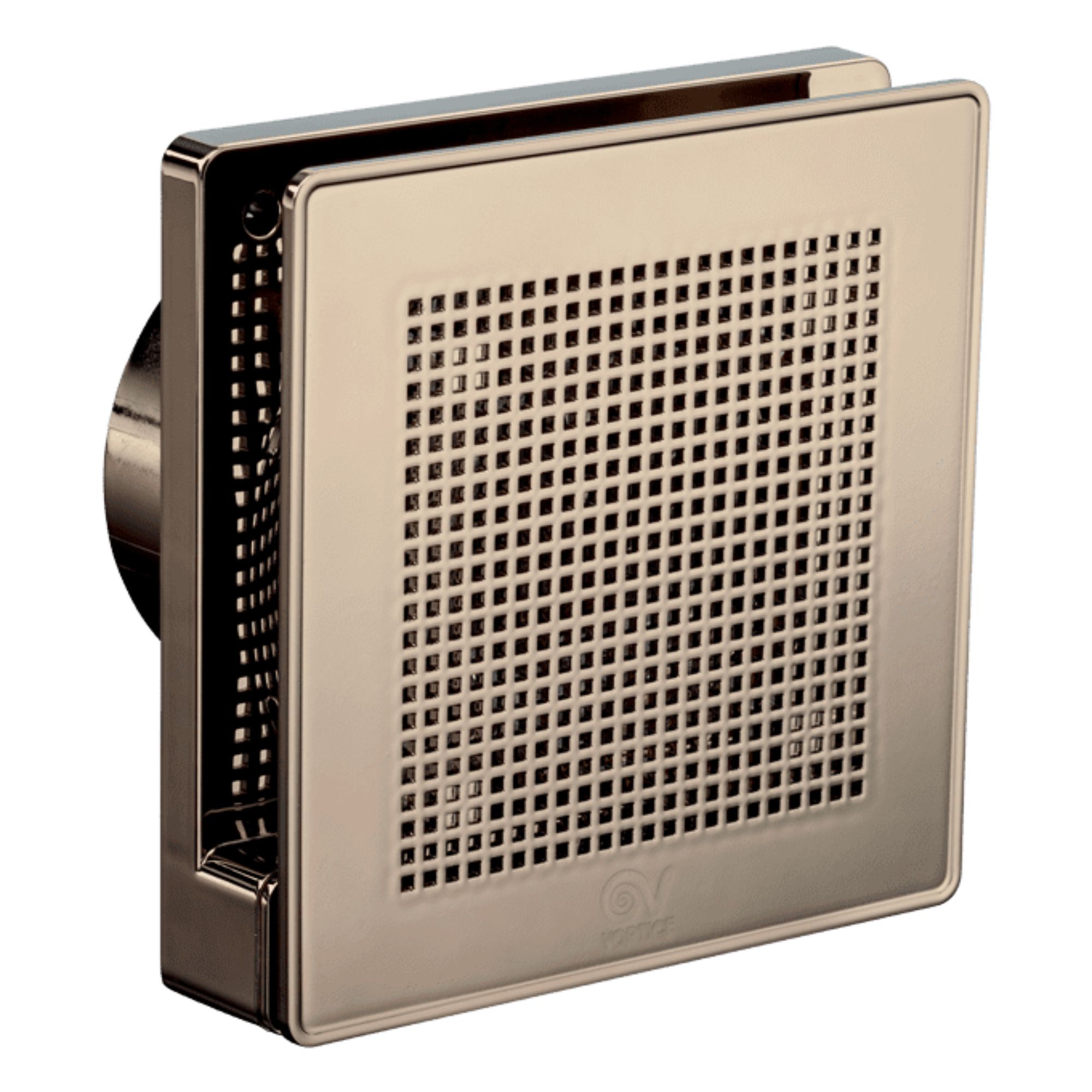

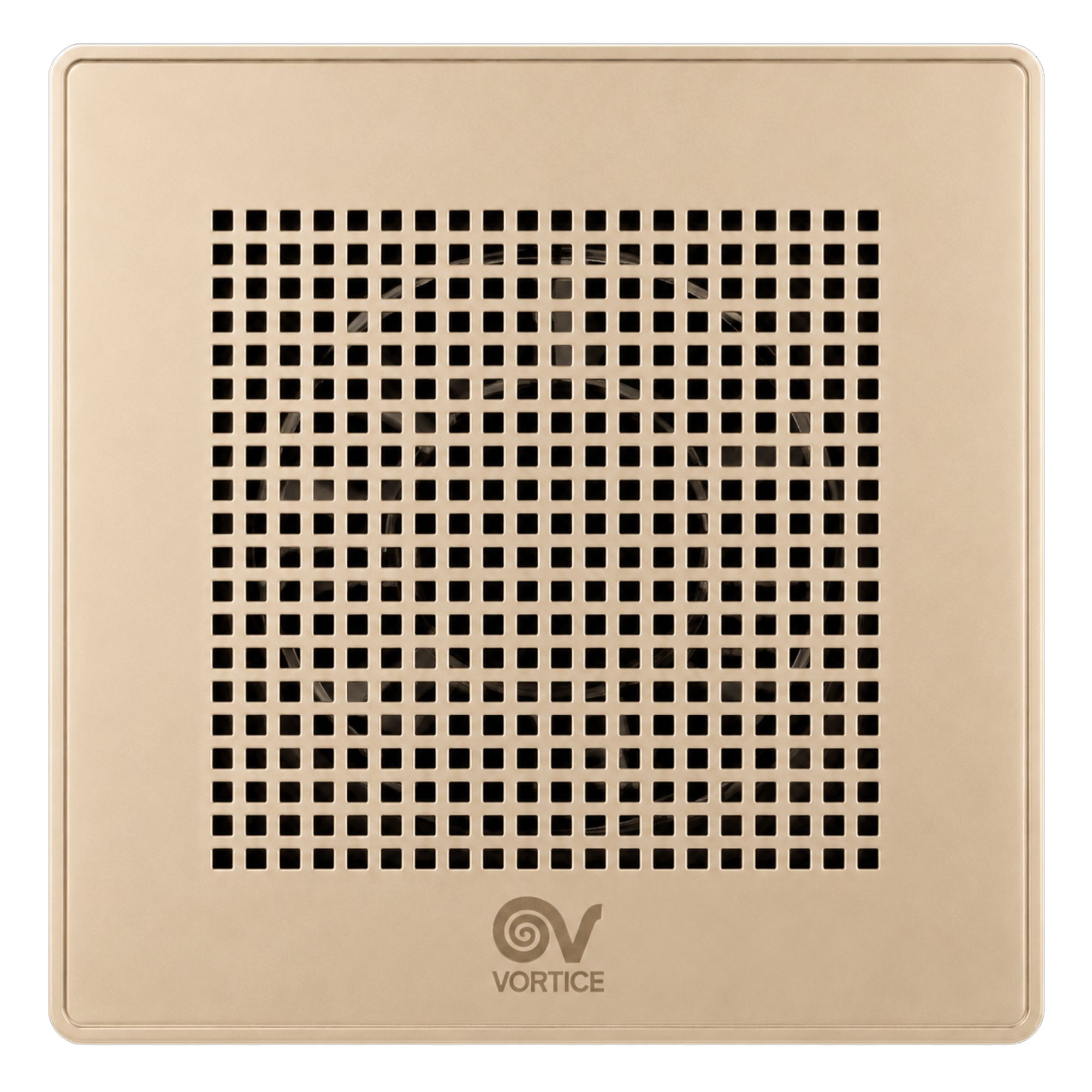

Axial Quiet Bathroom 100/4″ Fan Gold

11306

01_IT_11306_Foto_WEB_punto_evo_gold_01_71531

Axial Quiet Bathroom 100/4″ Fan with Timer – Gold

11316

01_IT_11307_Foto_WEB_punto_evo_gold_02_71548

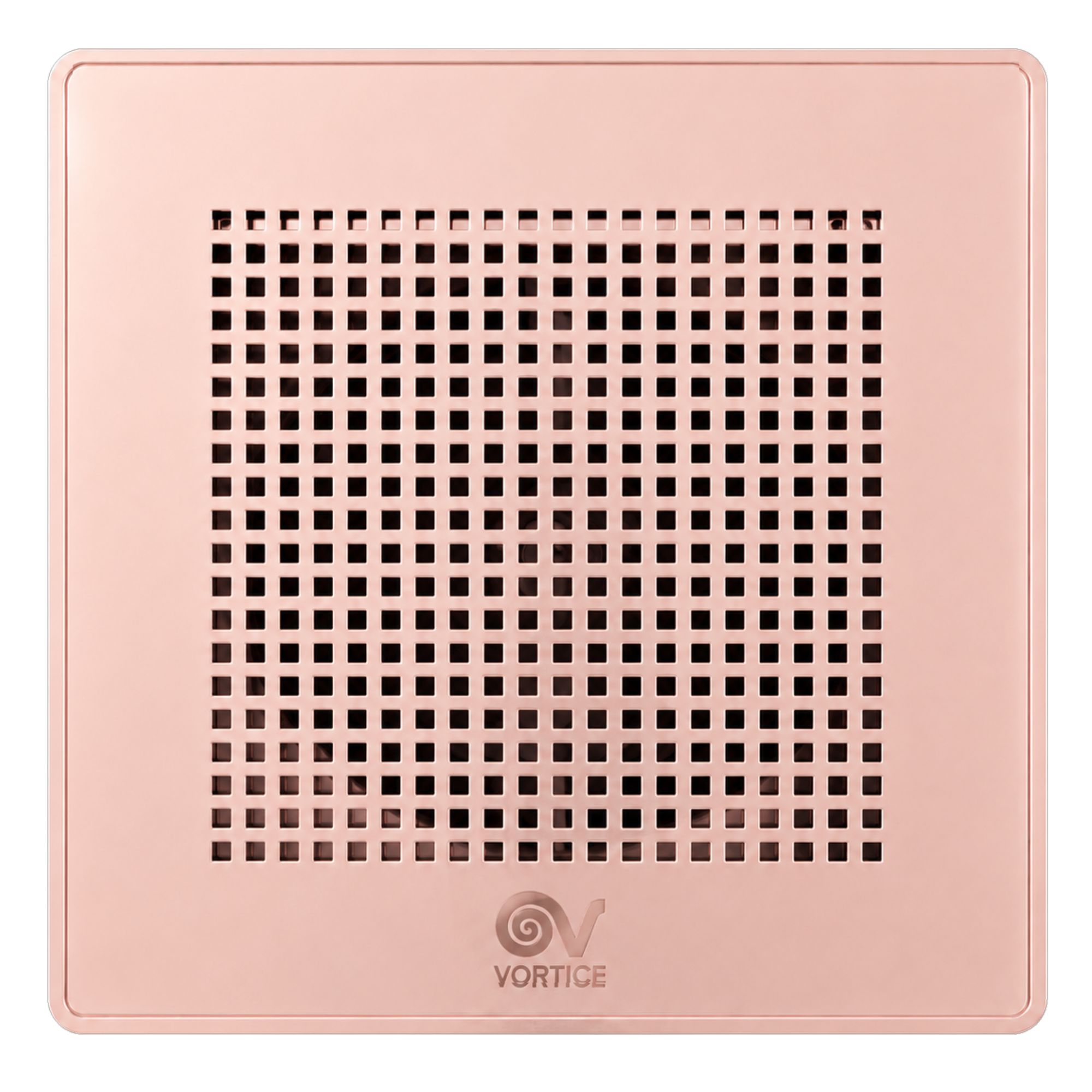

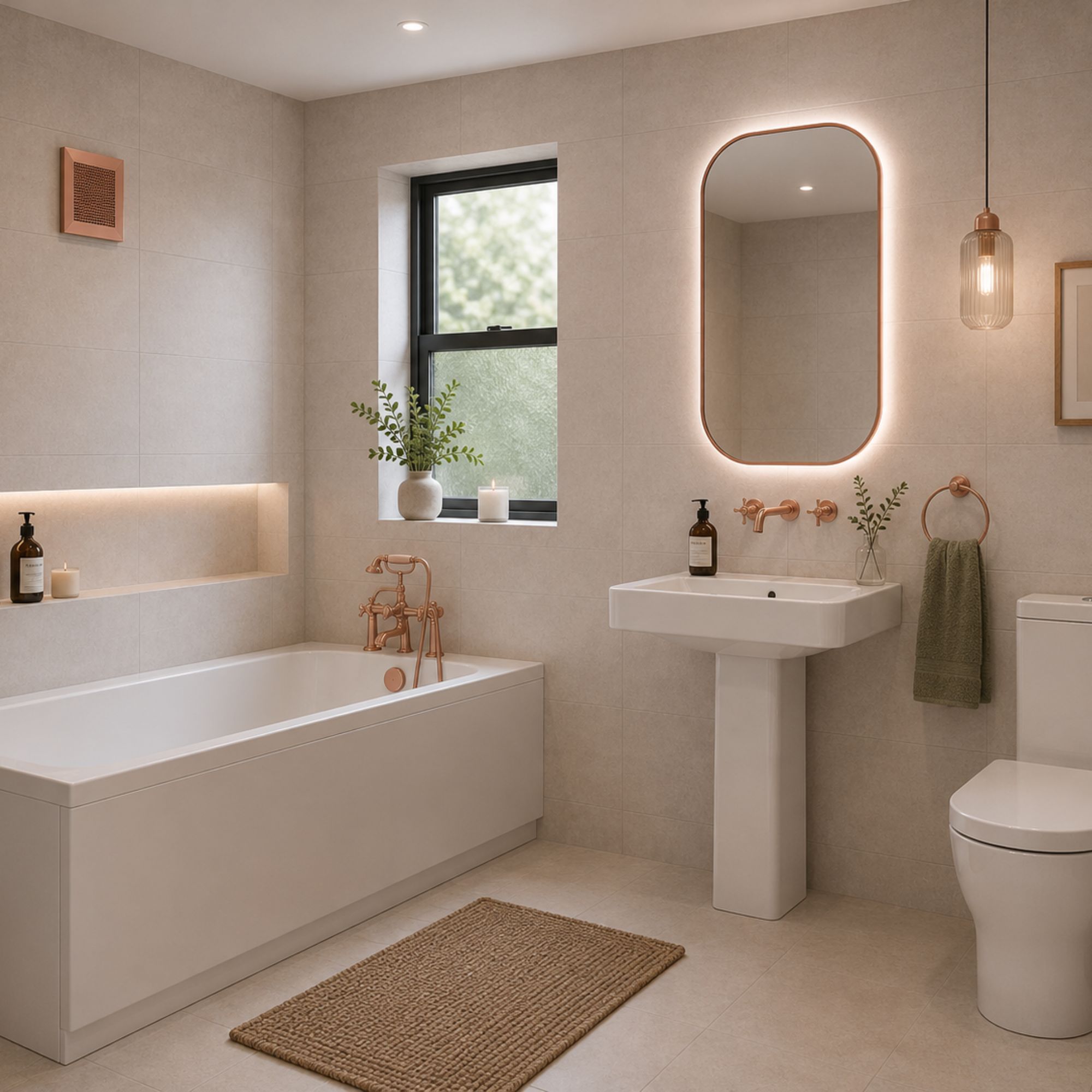

Axial Quiet Bathroom 100/4″ Fan Rose Gold

11307

01_IT_11307_Foto_WEB_punto_evo_gold_02_71548

Axial Quiet Bathroom 100/4″ Fan with Timer Rose Gold

11317

01_IT_11309_Foto_WEB_punto_evo_gold_02_71580

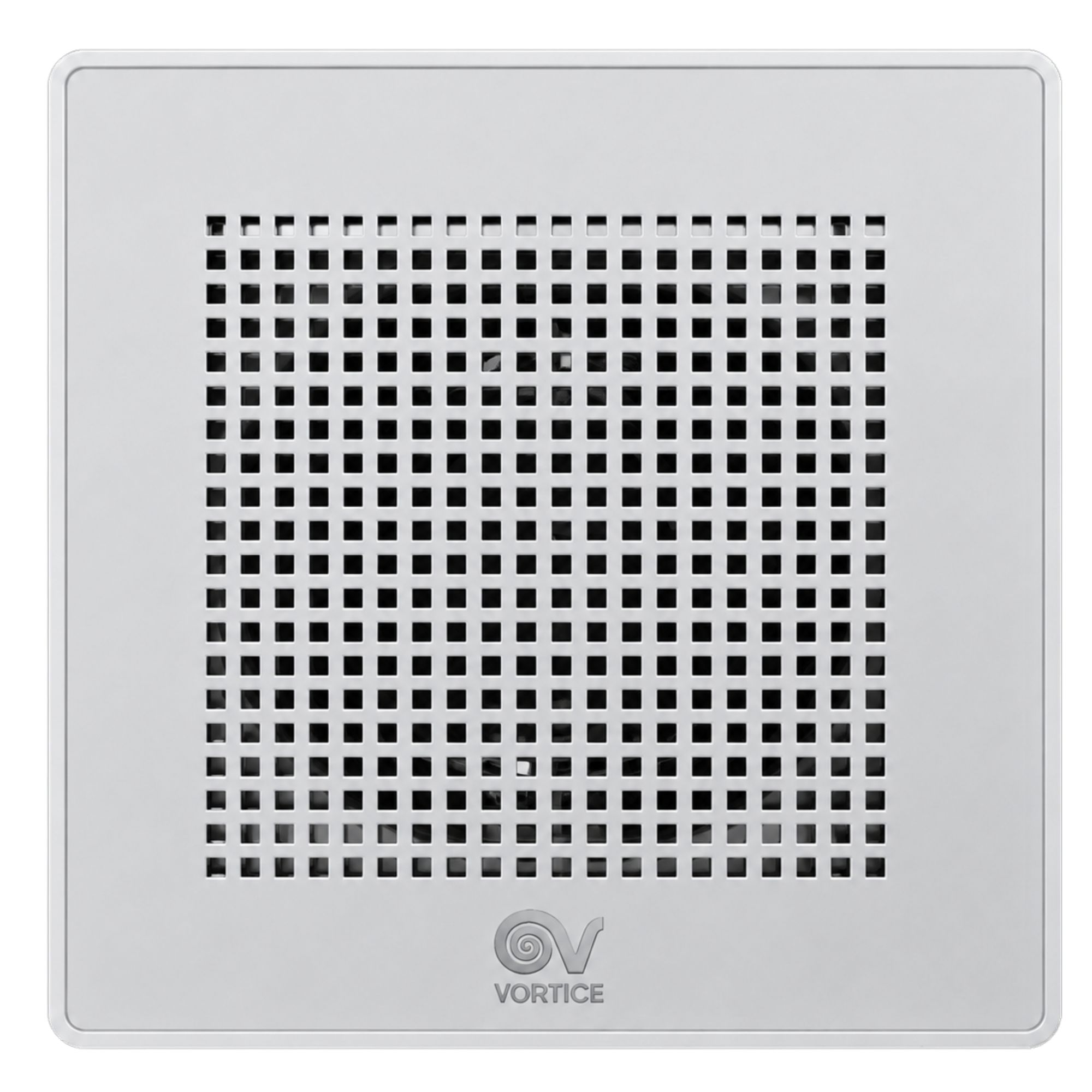

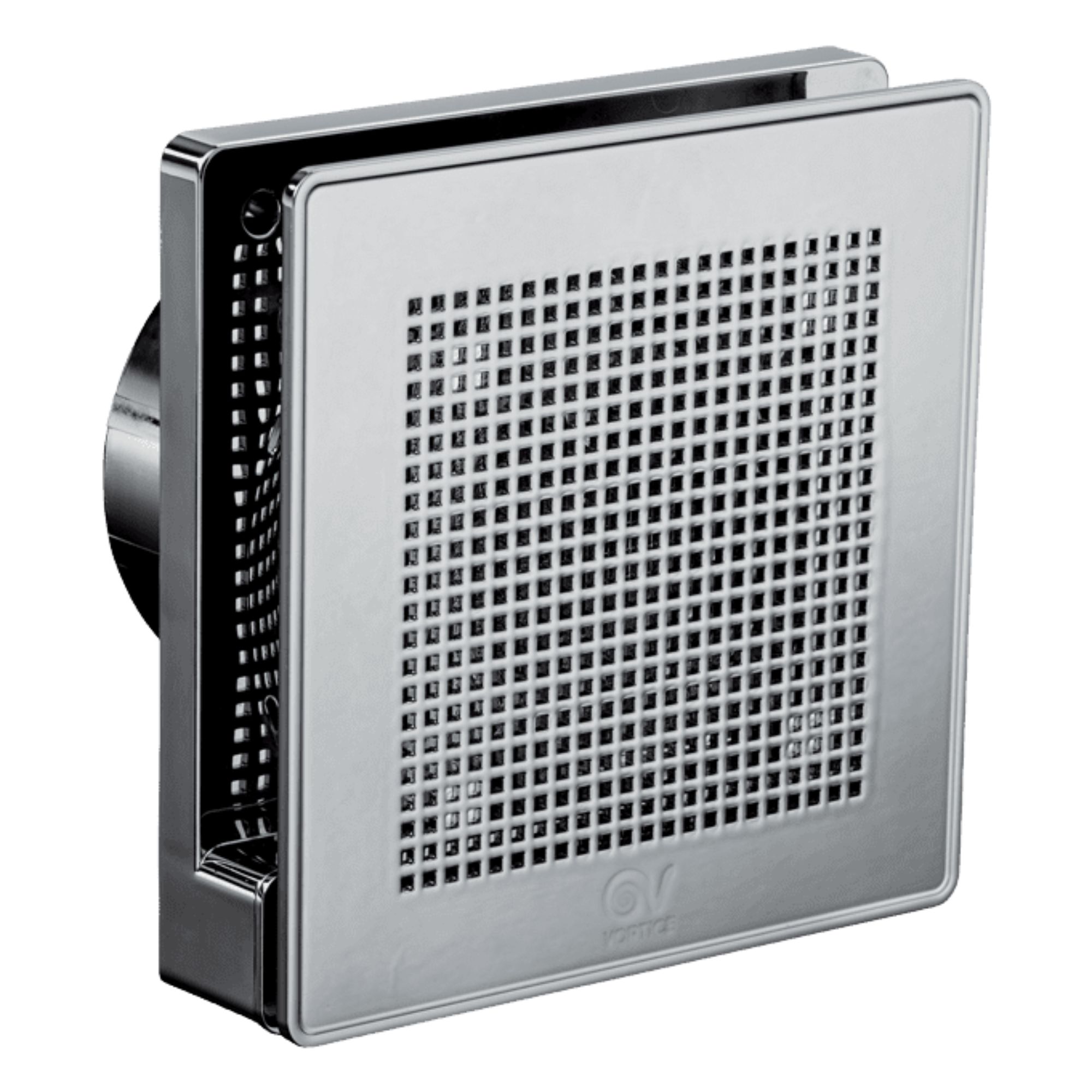

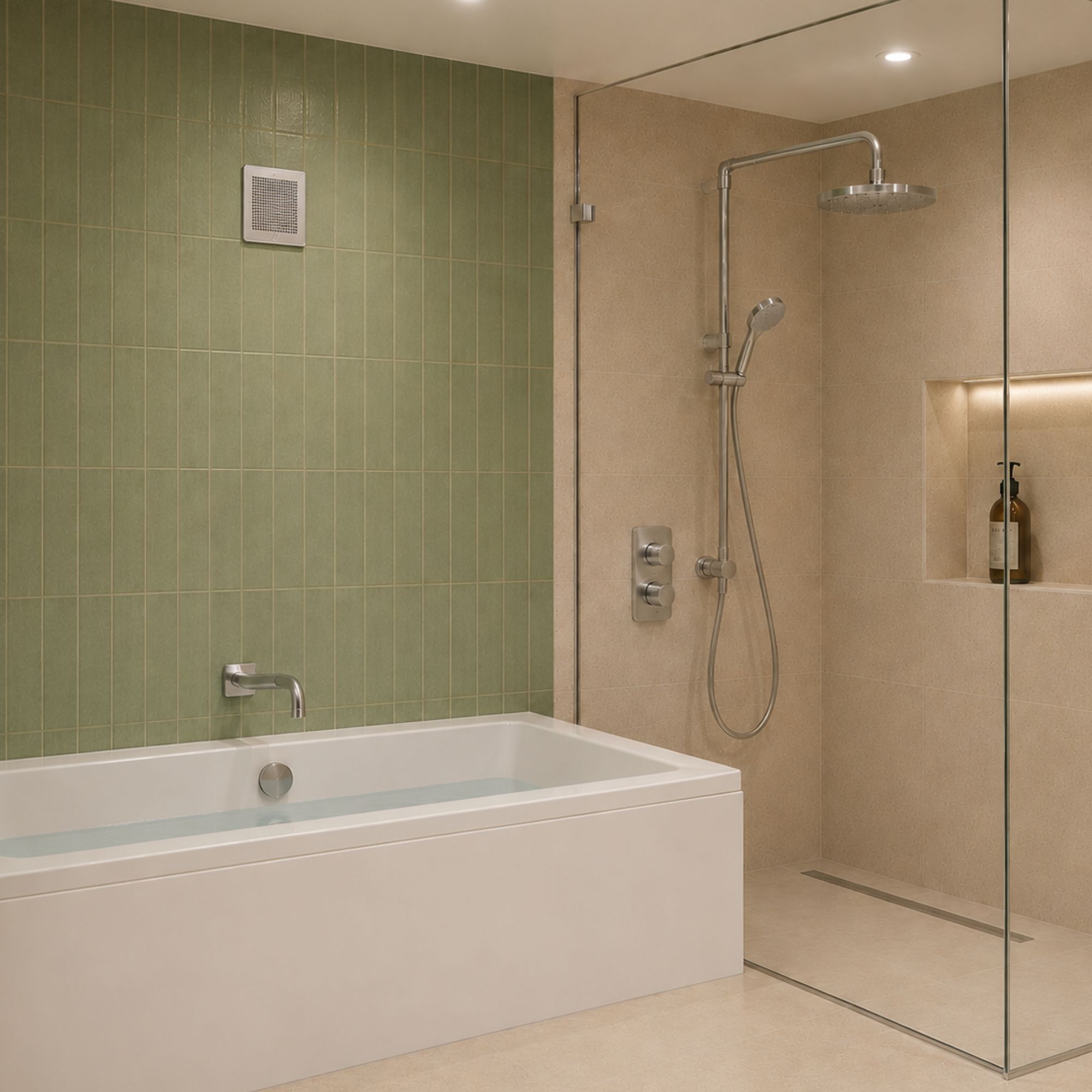

Axial Quiet Bathroom 100/4″ Fan Silver

11309

01_IT_11309_Foto_WEB_punto_evo_gold_02_71580

Axial Quiet Bathroom 100/4″ Fan with Timer Silver

11319

Features and Benefits

Key Features

  • Premium metallic finish: silver, gold, copper, and black mirror finishes.
  • Ultra-quiet operation: minimal noise for high comfort.
  • Energy-efficient motor: 2-speed design for low consumption.
  • Butterfly backdraught shutter: Prevents air backflow.
  • IP45 rated.

Technical Features

  • Durable ABS build: shock-proof, metallic mirror finish for style and wear resistance.
  • Long lasting motor: 2-speed, shaded pole with heat protection and ball-bearing shafts (30,000+ hours lifespan).
  • Optimised impellers: Helico-centrifugal design for high performance, low noise, and energy efficiency.
  • Class II insulation (no earthing required).

Performance Data

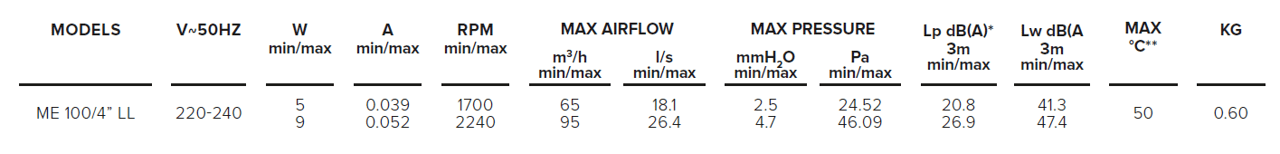

TECHNICAL_Punto Evo Gold

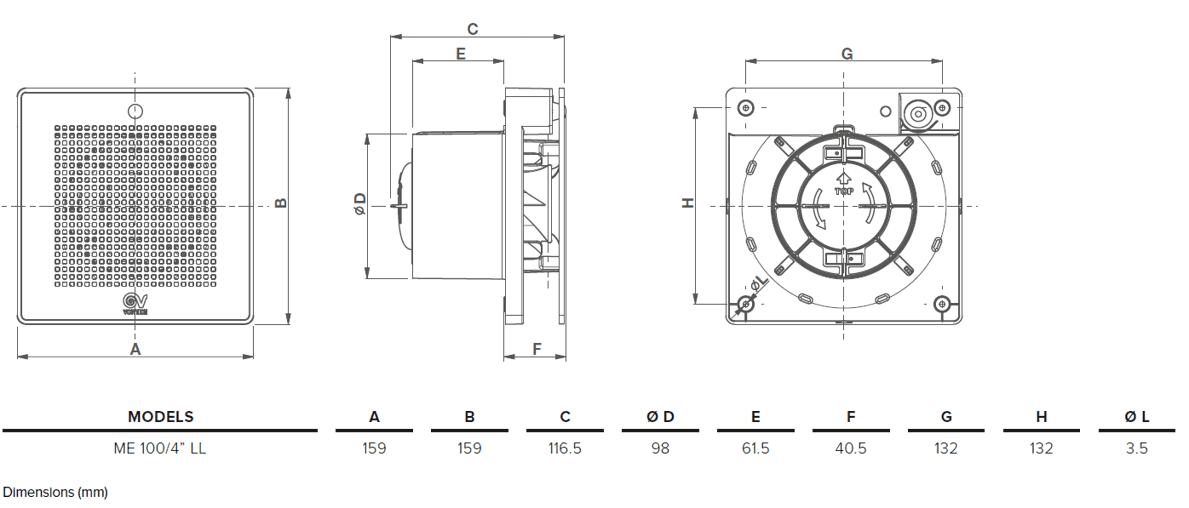

DIMENSIONS_Punto Evo Gold
PERFORMANCE_Performance Curve

Downloads

PDF Logo

Product Spec Sheet

PDF Logo

Instruction booklet

Related Accessories

Accessories you may require

446182_ Wall liners

Wall Liners

Fixed Grilles

Fixed Grilles
