Evo Flexo Axial Bathroom Fan 100mm

The Evo Flexo Axial Fan 100mm is a sleek, energy-efficient axial fan designed for bathrooms and en-suites. With a 90 m³/h airflow and a low noise level of just 26.9 dB(A), it ensures effective ventilation while maintaining a quiet environment. Its IP45 rating ensures splash-proof protection, making it suitable for wet areas. The fan also features an integral backdraught shutter to prevent unwanted air re-entry when the fan is off.

Timer Control

Humidity Control

Low Noise

IP45 Rated

Models

Description

Code

Mixed Flow Quiet Bathroom 100/4″ Fan with Integral Backdraught Shutter

11313

Mixed Flow Quiet Bathroom 100/4″ Fan with Integral Backdraught Shutter and Timer

11314

Features and Benefits

Key Features

Ultra-quiet operation: low noise for maximum comfort.
Modern design: stylish, easy to clean, and maintain.
Energy efficient: low power consumption.
Butterfly backdraught shutter: prevents air backflow.
Reliability: LL versions come with a 2 year warranty.
IP45 rated.

Technical Features

Durable ABS casing: shock-proof, UV-resistant white plastic.
Long-lasting motor: shaded pole, heat-protected, ball-bearing shafts (30,000+ hours lifespan).
High-efficiency impellers: helico-centrifugal design for strong airflow, low noise, and energy efficiency.
Timer models (T): auto shut-off (adjustable 3–20 min, default 3 min)
Class II insulation (no earthing required)

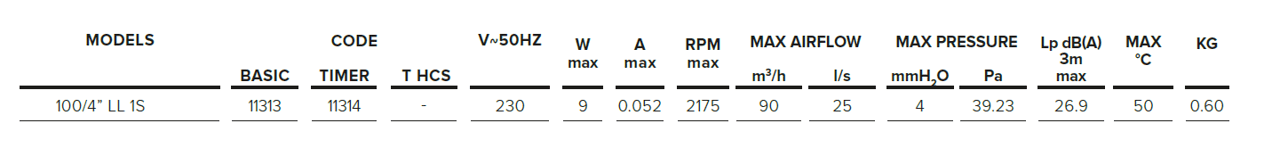

Performance Data
