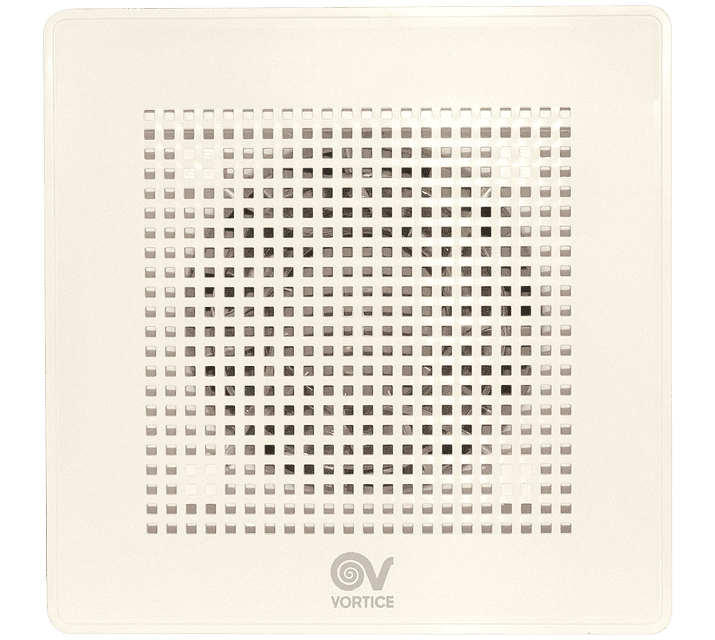

Evo Axial Bathroom Fan 100mm

Evo Axial Fan 100mm is an energy-efficient axial fan designed for bathrooms and en-suites. With a 100mm diameter, it delivers an airflow between 65 m³/h and 95 m³/h, ensuring effective moisture extraction. The fan operates at a low noise level of 26.9 dB(A) at maximum speed, providing a quiet environment. Its IP45 rating ensures splash-proof protection, making it suitable for wet areas. The fan also features an integral backdraught shutter to prevent unwanted air re-entry when the fan is off.

Timer and Smart Timer Option

Humidity Control

PIR Control

Models

Description

Code

Axial Quiet Bathroom 100/4″ Fan

11260

Axial Quiet Bathroom 100/4″ Fan with Timer

11264

Axial Quiet Bathroom 100/4″ Fan with Advanced Smart Timer

11261

Axial Quiet Bathroom 100/4″ Fan with Advanced Smart Timer and Humidistat

11262

Axial Quiet Bathroom 100/4″ Fan with Timer and PIR

11263

Features and Benefits

Key Features

Ultra-quiet operation: minimal noise for maximum comfort.
Energy-efficient motor: 2-speed design for low consumption.
Reliability: LL versions come with a 7 year warranty.
Smart timer: allows scheduling of fan operation based on specific times and durations.
Butterfly backdraught shutter: prevents air backflow.
IP45 rated.

Technical Features

Durable ABS build: White, UV-resistant, shock-proof casing.
Long lasting motor: 2-speed, shaded pole, heat-protected with ball-bearing shafts (30,000+ hours lifespan).
Optimised impellers: Helico-centrifugal design for high performance, low noise, and energy efficiency.
Class II insulation (no earthing required).

Performance data
