Punto Axial Kitchen Fan 150mm

The Punto Axial Fan 150mm fan is a high-performance solution for kitchens . With a 150mm diameter, it delivers up to 335 m³/h airflow, ensuring effective moisture extraction. Designed for wall or window installation, it features IPX4 splash-proof protection, making it suitable for wet areas.

Timer Control

Humidity Control

PIR Sensor

Models

Description

Code

Axial Kitchen 150/6″ Fan

11401

Axial Kitchen 150/6″ Fan with Timer

11411

Axial Kitchen 150/6″Fan with Auto Shutters

11421

Axial Kitchen 150/6″Fan with Auto Shutters and and Timer

11431

Axial Kitchen 150/6″Fan with Timer and Humidistat

11693

Axial Kitchen 150/6″Fan with Timer, Humidistat and Auto Shutters

11697

Axial Kitchen 150/6″Fan with Pull Cord

11851

Axial Kitchen 150/6″Fan with Auto Shutters and Pull Cord

11856

Axial Kitchen 150/6″Fan with Timer and PIR

11881

Features and Benefits

Key Features

Wide range: 53 models (Ø100–150mm) with various features.
Multiple control options: available with automatic shutters, timer, pull cord, humidistat, microprocessor, and PIR sensor.
IPX4 rated.

Technical Features

Durable motor: shielded poles with bronze or ball bearings, thermal cut-out.
UV-resistant build: motor support and grille made of anti-UV ABS.
Optimised performance: high airflow, low noise, and energy-efficient motor.
12V versions: 8 models, with or without automatic shutters.
PIR models: auto-activates when a person enters; runs 3–20 min after exit.
T-HCS models: adjustable humidity activation (RH: 60%, 70%, 80%, 90%), auto shut-off when RH normalises.

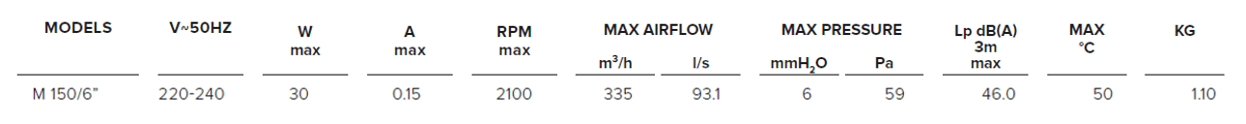

Performance Data
