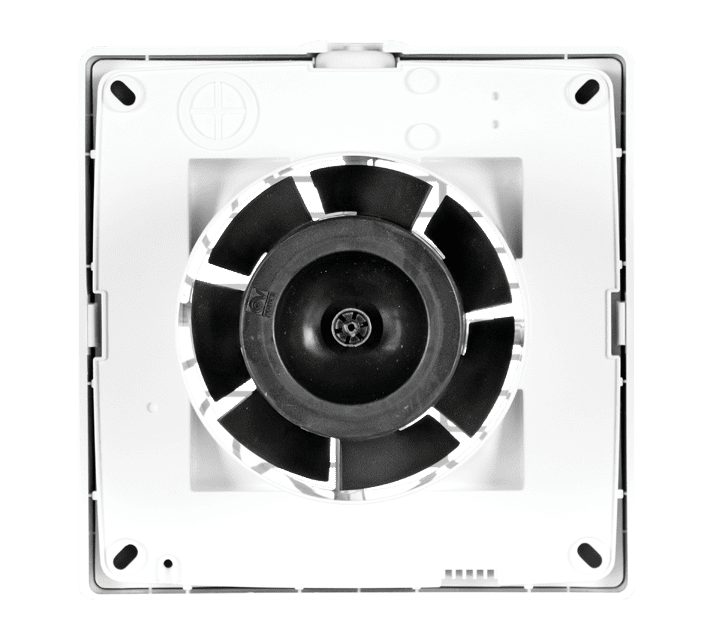

Punto Axial Utility Fan 120mm

The Punto Axial Fan 120mm fan is a high-performance solution for utility rooms . With a 125mm diameter, it delivers up to 175 m³/h airflow, ensuring effective moisture extraction. Designed for wall or window installation, it features IPX4 splash-proof protection, making it suitable for wet areas.

Timer Control

Humidity Control

PIR Sensor

Models

Description

Code

Axial Utility Fan 120/5″ Standard

11301

Axial Utility Fan 120/5″ with Timer

11311

Axial Utility Fan 120/5″ with Auto Shutters

11321

Axial Utility Fan 120/5″ with Auto Shutters and Timer

11331

Axial Utility Fan 120/5″ with Pull Cord

11741

Axial Utility Fan 120/5″ with Auto Shutters and Pull Cord

11746

Axial Utility Fan 120/5″ with Timer and PIR

11781

Features and Benefits

Key Features

Wide range: 53 models (Ø100–150mm) with various features.
Multiple control options: available with automatic shutters, timer, pull cord, humidistat, microprocessor, and PIR sensor.
IPX4 rated.

Technical Features

Durable motor: shielded poles with bronze or ball bearings, thermal cut-out.
UV-resistant build: motor support and grille made of anti-UV ABS.
Optimised performance: high airflow, low noise, and energy-efficient motor.
12V versions: 8 models, with or without automatic shutters.
PIR models: auto-activates when a person enters; runs 3–20 min after exit
T-HCS models: adjustable humidity activation (RH: 60%, 70%, 80%, 90%), auto shut-off when RH normalises.

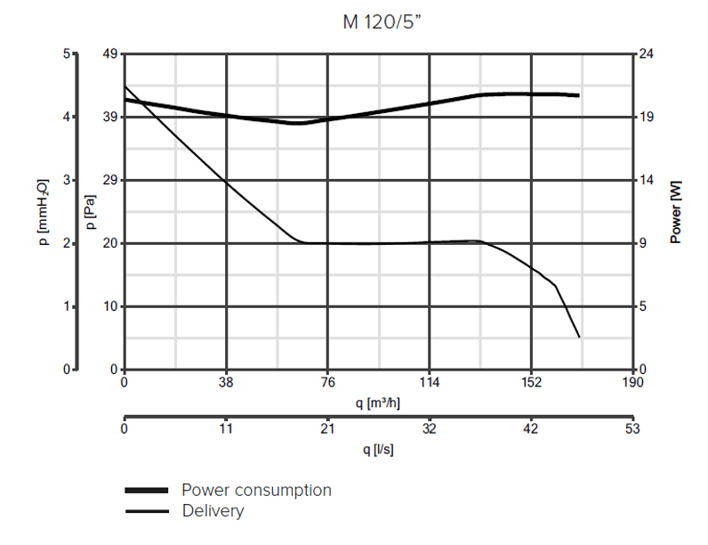

Performance data
