Lineo Quiet ES In-Line Fan

The Lineo Quiet ES range features high-performance mixed flow in-line duct fans, specifically designed for ultra-quiet operation in residential, commercial, and industrial environments such as kitchens, bathrooms, offices, and retail spaces. Equipped with energy-efficient EC brushless motors, these fans provide reliable airflow while minimising sound levels, ensuring smooth and quiet operation. The casing is designed with sound-absorbing materials to reduce noise transmission, making it perfect for spaces where low noise is essential. With multiple speed settings and easy maintenance, the Lineo Quiet ES ensures superior ventilation performance with minimal disruption.

01_IT_17170_Foto_WEB_Lineo_QuietES_01_167526

Low Noise

Models

Description

Code

100/4″ Low Noise Mixed Flow In-Line Duct Fan with EC Motors

17170

125/5″ Low Noise Mixed Flow In-Line Duct Fan with EC Motors

17171

150/6″ Low Noise Mixed Flow In-Line Duct Fan with EC Motors

17172

200/8″ Low Noise Mixed Flow In-Line Duct Fan with EC Motors

17174

250/10″ Low Noise Mixed Flow In-Line Duct Fan with EC Motors

17175

315/12″ Low Noise Mixed Flow In-Line Duct Fan with EC Motors

17176

Features and Benefits

Key Features

Variable speed options: equipped with 2 or 3 speed settings, depending on the model, to match your ventilation needs.
EC brushless motors: for high energy efficiency and long operational life.
Low noise operation: sound-absorbing casing minimises environmental noise and reduces transmission through exhaust and supply ducts.
Easy maintenance: designed for fast, accessible servicing and cleaning to reduce downtime.
Flexible performance: adapts easily to different performance demands and energy consumption requirements.
Versatile installation: suitable for horizontal, vertical, or angled mounting.
ErP 2018 compliant: fully conforms to EU Regulation No. 1253/2014 for energy-related products.

Technical Features

White, shock-proof ABS plastic panels with UV resistance to prevent aging from sunlight exposure.
Heat-protected motors with shafts mounted on bushings with self-centering and self-lubricating necks for low noise emissions.
Ball bearings (LL models) for durability, ensuring at least 30,000 hours of continuous operation at maximum plate temperature.
Axial impellers made from chemical-resistant plastic resin, featuring saber-shaped blades for high performance and low noise.
Exhaust duct closing fins to prevent air backflow and odours when switched off (automatic on A models).
Compatible with optional timers, as well as temperature, humidity, smoke, and presence sensors.
Fully compliant with regulation No. 327/2011/EU.
Electrical insulation class: II (no grounding required).

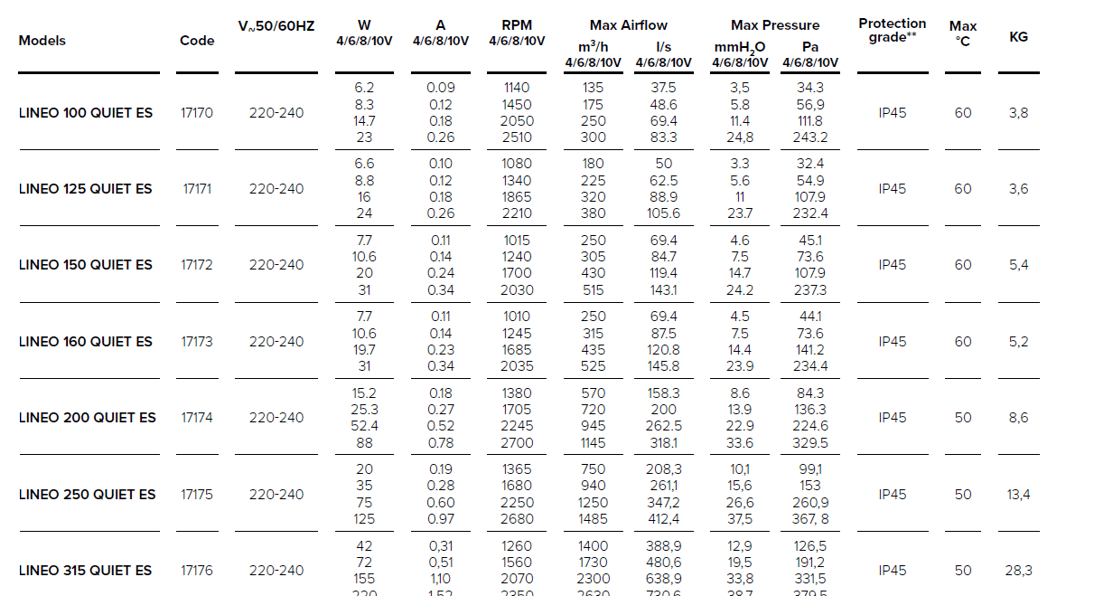

Performance Data
