Kentalcook Box Fan Kit

The Kentalcook box fans range offers high-efficiency, sound-insulated ventilation solutions tailored for environments such as commercial kitchens, industrial facilities, and areas with high thermal loads. These fans are engineered to handle elevated temperatures and provide effective noise attenuation.

KENTALCOOK

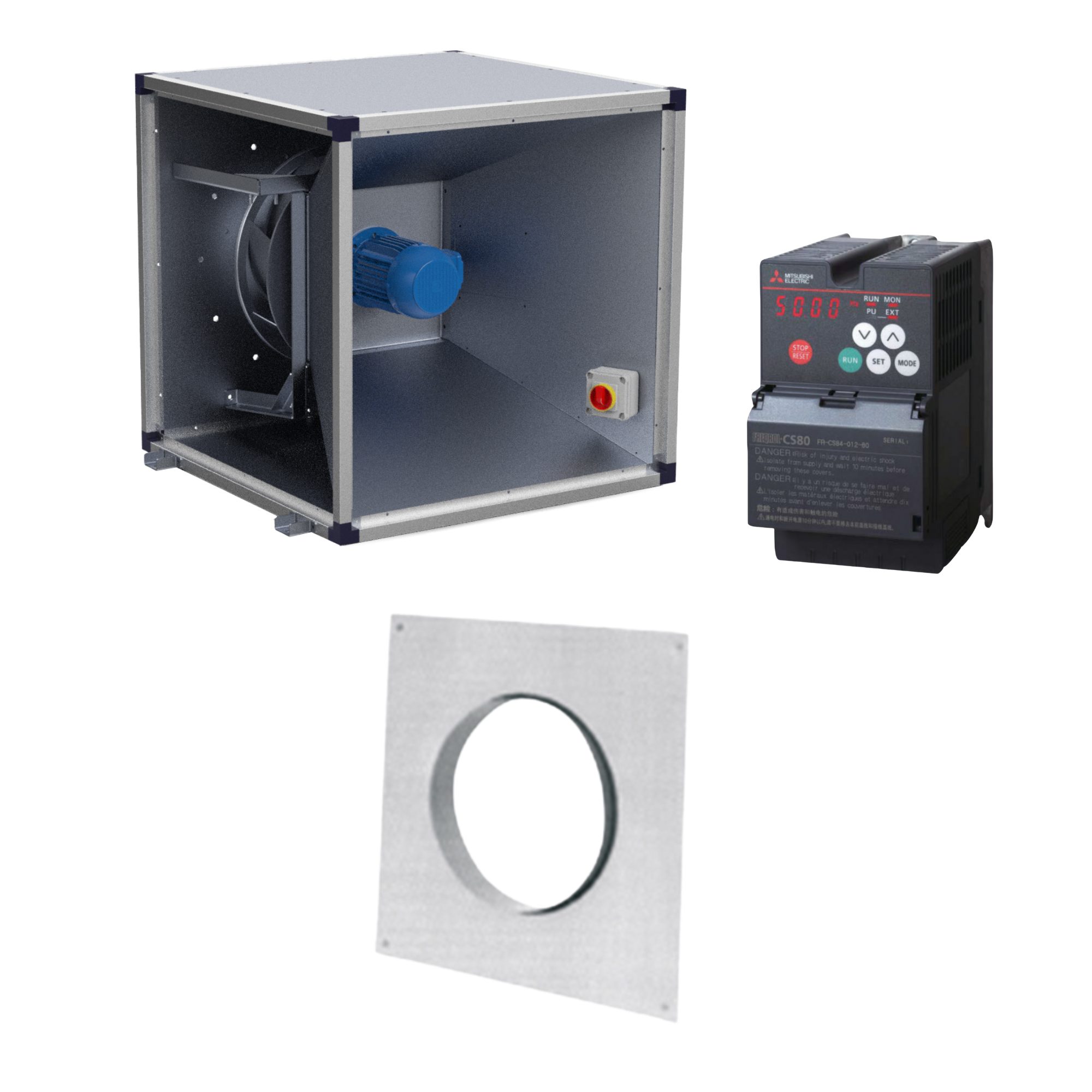

Kentalcook Pack - 1

Low Noise

High Temperature

Models

Description

Code

Kentalcook Pack - 1

High Temp Acoustic Box Fan 315 Single Phase Pack

KC315P1

Kentalcook Pack - 1

High Temp Acoustic Box Fan 355 Single Phase Pack

KC355P1

Kentalcook Pack - 1

High Temp Acoustic Box Fan 400 Single Phase Pack

KC400P1

Kentalcook Pack - 1

High Temp Acoustic Box Fan 450 Single Phase Pack

KC450P1

Kentalcook Pack - 1

High Temp Acoustic Box Fan 500 Single Phase Pack

KC500P1

Kentalcook Pack - 1

High Temp Acoustic Box Fan 315 Three Phase Pack

KC315P3

Kentalcook Pack - 1

High Temp Acoustic Box Fan 355 Three Phase Pack

KC355P3

Kentalcook Pack - 1

High Temp Acoustic Box Fan 400 Three Phase Pack

KC400P3

Kentalcook Pack - 1

High Temp Acoustic Box Fan 450 Three Phase Pack

KC450P3

Kentalcook Pack - 1

High Temp Acoustic Box Fan 500 Three Phase Pack

KC500P3

Kentalcook Pack - 1

High Temp Acoustic Box Fan 560 Three Phase Pack

KC560P3

Kentalcook Pack - 1

High Temp Acoustic Box Fan 630 Three Phase Pack

KC630P3

Features and Benefits

Key Features

  • High Temperature Acoustic Box Fan.
  • Watertight ventilation box: high efficiency, low noise, 30 mm aluminum profile structure with nylon corners.
  • Panels: galvanised steel sandwich panels with 25 mm rockwool insulation (A1 non-combustible, 90 kg/m³ density).
  • Fastening system: quick assembly/disassembly for cleaning, maintenance, or panel replacement.
  • Fan type: centrifugal plug Fan with external motor (outside airflow).
  • Connections: circular inlet for easy duct connection, open outlet.
  • Motor: AC motor isolated from airFlow, stable in contaminated environments. Asynchronous squirrel cage motor with IP-55 protection and Class F insulation.
    Voltage options: 230V 50Hz (single-phase). 230/400V & 400/690V 50Hz (single-speed three-phase). 400V 50Hz (two-speed three-phase).
  • Impeller: high-performance, single-aspiration turbine with backward curved blades, self-cleaning steel construction, statically/dynamically balanced.

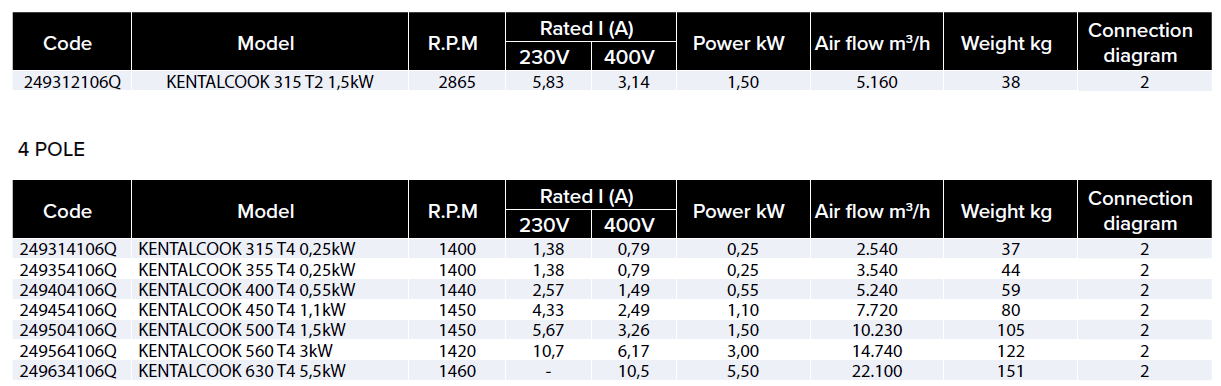

Performance Data

TECHNICAL_Kentalcook

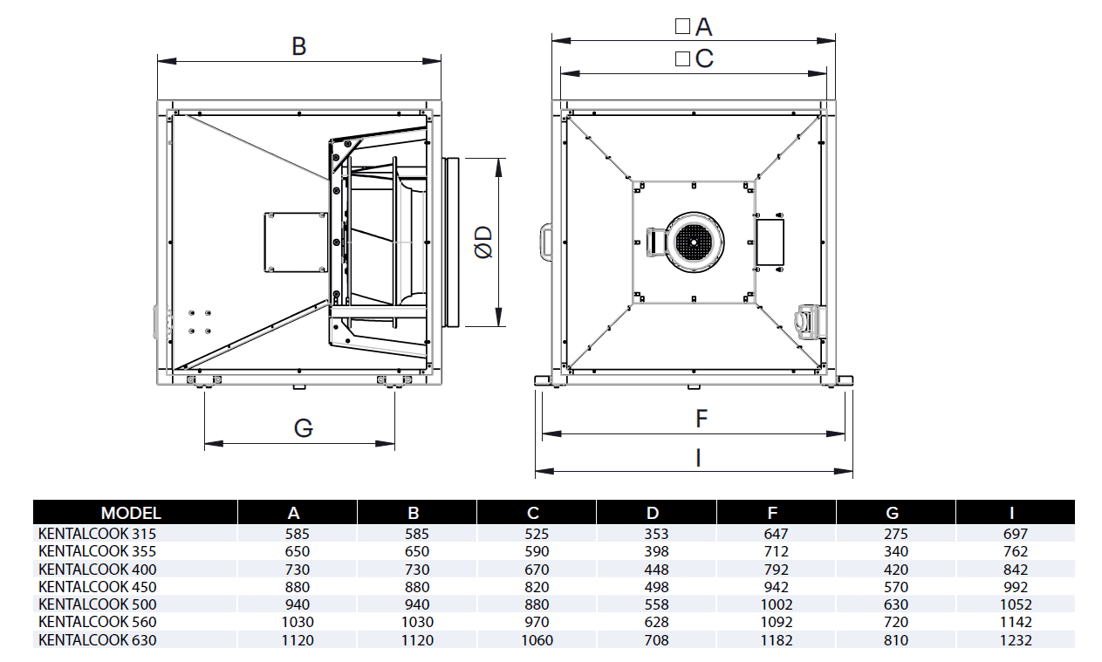

DIMENSIONS_Kentalcook
