Angol In-Line Centrifugal Bathroom Fan 100mm

The Angol In-Line Centrifugal Fan 100mm is a high-performance upright in-line centrifugal extractor fan, designed for domestic applications like bathrooms, en suites, and WC areas. It features an integrated timer function, allowing for continued operation after the light is turned off, ensuring improved air circulation and removal of moisture.

01_IT_10204_Foto_WEB_angol_k_01_73018-600x537 (1)

Timer Control

Models

Description

Code

01_IT_10204_Foto_WEB_angol_k_01_73018-600x537 (1)

Centrifugal 100/4″ Upright In-Line Bathroom Fan with Timer

10206

Features and Benefits

Key Features

  • Quick and easy installation: designed for fast setup.
  • Timer option: available from 3 – 20 minutes.
  • IPX2 rated.

Technical Features

  • Durable construction: white, shock-proof ABS plastic resin, UV-resistant to prevent aging.
  • Integrated protective grilles: built into air inlets for added safety.
  • Reliable motor: heat-protected, two-speed motor (Angol K) with self-lubricating, self-centering bushings for low noise and consistent operation.
  • Speed control compatible: adjustable using Vortice controllers.
  • High-efficiency impeller: centrifugal design with optimised profile blades for strong airflow and resistance to aggressive agents.
  • Class II electrical insulation: no earthing required.

Performance data

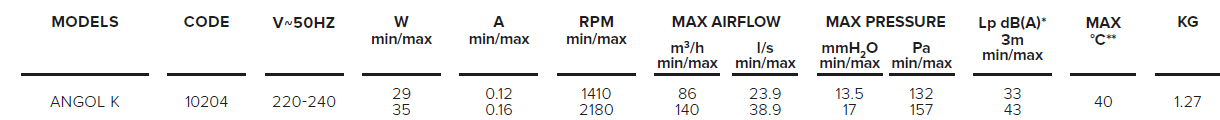

TECHNICAL_ANGOL KRT
DIMENSIONS_ Angol krt
PERFORMANCE_ Angol krt

Downloads

PDF Logo

Product Spec Sheet

Download
PDF Logo

Instruction booklet

Download
