CA Plastic In-Line Fan

Technical Features

• Durable casing integrated into the main terminal box and Flow conditioner fins, made from self-extinguishing plastic resin (V0) for enhanced safety.
• 3-speed fan control: which can be adjusted using the optional TRIO-CA device (code 12869).

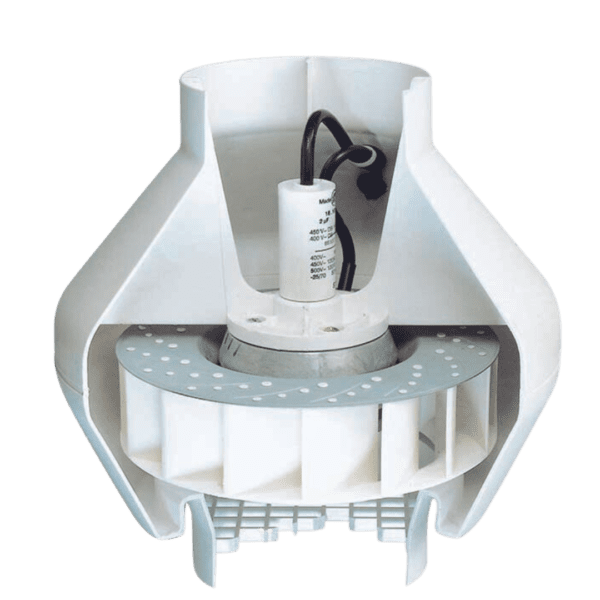

• Advanced motor and impeller system:
• AC motors with thermal overload protection, featuring ball bearings for a long lifespan (at least 30,000 hours) at maximum plate temperature.
• Backward-curved impellers: made of heat-resistant plastic resin with glass fiber reinforcement, ensuring strength and stability.
• Possibility of connecting to remote environmental temperature, humidity, smoke and presence sensors (optional).

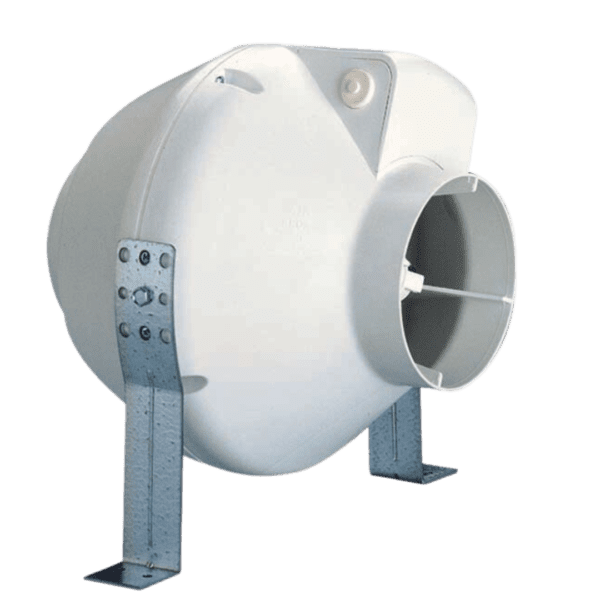

• Sturdy installation brackets: made of galvanised steel sheet, suitable for wall, ceiling, and false ceiling mounting.
• Can be connected to optional remote sensors for temperature, humidity, smoke, and presence detection.
• Regulation compliant: Fully meets ErP 2018 Regulation No. 1253/2014.
• Electrical insulation class: II (no grounding required).
