BD Double Inlet Fan

The BD range includes compact, double-inlet centrifugal fans designed for low-pressure applications. Featuring durable IP55-rated motors, these fans are ideal for ventilation boxes and air handling units in both residential and industrial environments.

BD

Models

Description

Code

BD

Double Inlet Fan 7/7, Single Phase, 0.13kW

251100261

BD

Double Inlet Fan 9/7 Single Phase, 4 Pole, 0.35kW

251270260

BD

Double Inlet Fan 9/9 Single Phase, 4 Pole, 0.35kW

251220260

BD

Double Inlet Fan 9/9 Single Phase, 6 Pole, 0.13kW

251280261

BD

Double Inlet Fan 10/8 Single Phase, 4 Pole, 0.59kW

251340260

BD

Double Inlet Fan 10/10 Single Phase, 4 Pole, 0.59kW

251320260

BD

Double Inlet Fan 12/9 Single Phase, 6 Pole, 0.76kW

251600261

BD

Double Inlet Fan 12/12 Single Phase, 6 Pole, 0.76kW

251520261

BD

Double Inlet Fan 12/12 Three Phase, 6 Pole, 1.1kW

251520160

BD

Double Inlet Fan 15/15 Three Phase, 6 Pole, 2.2kW

252370106

Features and Benefits

Key Features

  • Construction: galvanised steel sheet housing for durability.
  • Impeller design: made from polyamide reinforced with fiberglass in models 7/7, 9/9, 10/10, and 12/12; galvanised steel sheet in other models.
  • Double inlet, forward-curved impeller for efficient airflow.
  • Easy installation: supplied with mounting feet for easy installation.
  • Motor fixing system: exclusive design with flexible arms and silent blocks to reduce vibration.
  • Motor protection: closed motor with extruded aluminum housing, integrated terminal box, IP65 protection, and Class F insulation.

Technical Features

  • Motor protection: IP-55 rated motor with Class F insulation for reliable operation.
  • Temperature tolerance: maximum working temperature of 50ºC.
  • Applications:
    • Air renewal in buildings and industries.
    • Industrial and professional kitchen hoods (with fat filtering).
    • Suitable for supply or extraction applications

Performance Data

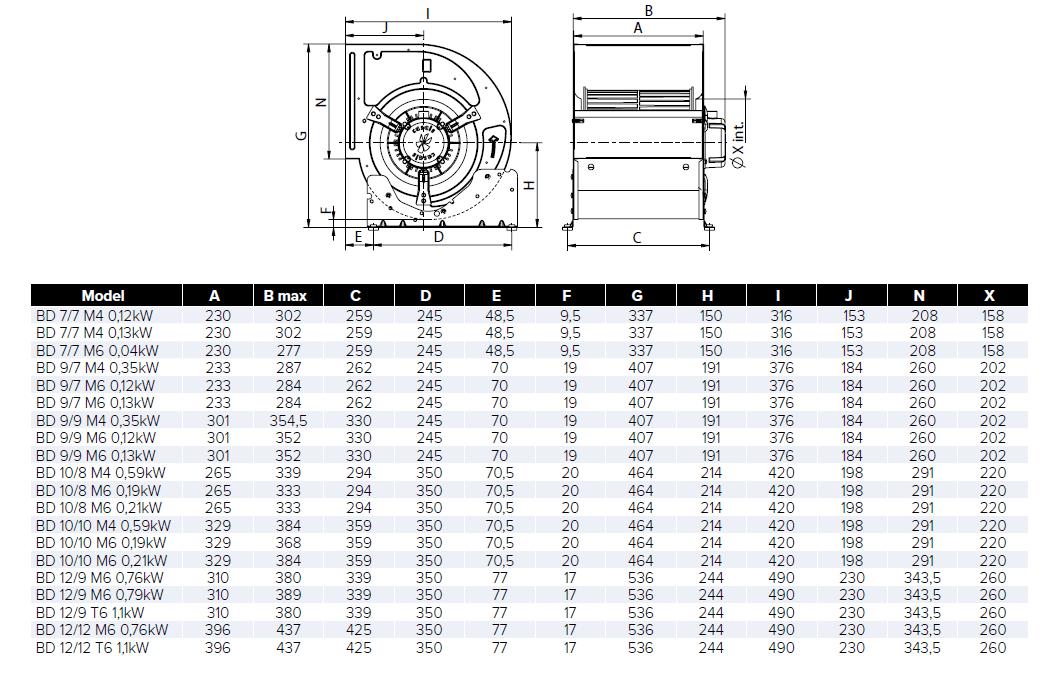

DIMENSIONS_BD
