AER HR Single Room Heat Recovery Fan 100/150mm

The AER HR Single Room Heat Recovery Fan 100/150mm is a decentralised alternate flow with heat retention ventilation system for use in a single room such as a bedroom or living room. Designed to extract and supply air to rooms in an energy efficient way, the system is ideal for improving indoor air quality and reducing the risk of condensation and mould growth.

12430,12459_AER HR 100 1
12430,12459_AER HR 100 2

Low Noise

Heat Recovery

Models

Description

Code

12430,12459_AER HR 100 1

Axial Single Room Heat Recovery Unit 100/4″ Standard

12430

12430,12459_AER HR 100 1

Axial Single Room Heat Recovery Unit 150/6″ Standard

12459

Features and Benefits

Key Features

  • Modern design: sleek front cover, easily removable for cleaning and inspection.
  • Alternate flow technology: reverses airflow every 70 seconds for efficient heat recovery.
  • Free cooling: prevents heat exchange when not required, with an LED indicator.
  • Synchronisation: easy to synchronize multiple units for consistent air management.
  • 5-Year warranty: long-term reliability with a 5-year product warranty.
  • Easy maintenance: simple cleaning and maintenance, including the heat exchanger.
  • Eco-friendly: fully recyclable plastic components and double insulation (no earth connection required).
  • Safety and compliance: tested to the latest electrical safety standards (EN60335-2-80, EMC Directive).
  • IPX4 rated.

Technical Features

  • Easy maintenance of all parts including the heat exchanger.
  • Totally recyclable plastic components, environmentally friendly.
  • Double insulated: no earth connection is required.
  • Tested to the latest standards meaning accurate, up to date information on electrical safety,performance and noise level that can be relied upon.
  • Designed and manufactured in accordance with EN60335- 2-80 (Low Voltage Directive) and the EMC Directive (electromagnetic compatibility).
  • Casing made of high quality ABS provides long lasting, shock-proof and robust construction.
  • Unique design impeller, providing low noise and increased efficiency.
  • EC brushless motor with integral thermal protection, mounted on sealed-for-life high quality ball bearings to assure a longer fan life and ideal also for cold climates.
  • Stator with aerodynamic deflectors to reduce air turbulences and designed to maximise performance and efficiency.

Performance Data

TECHNICAL_HR

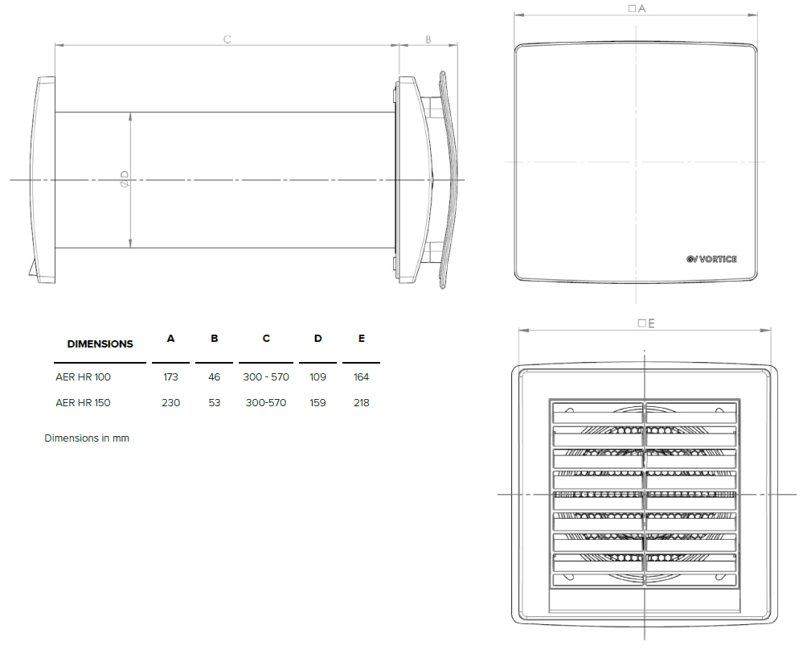

DIMENSIONS_HR
